Bravi Platforms

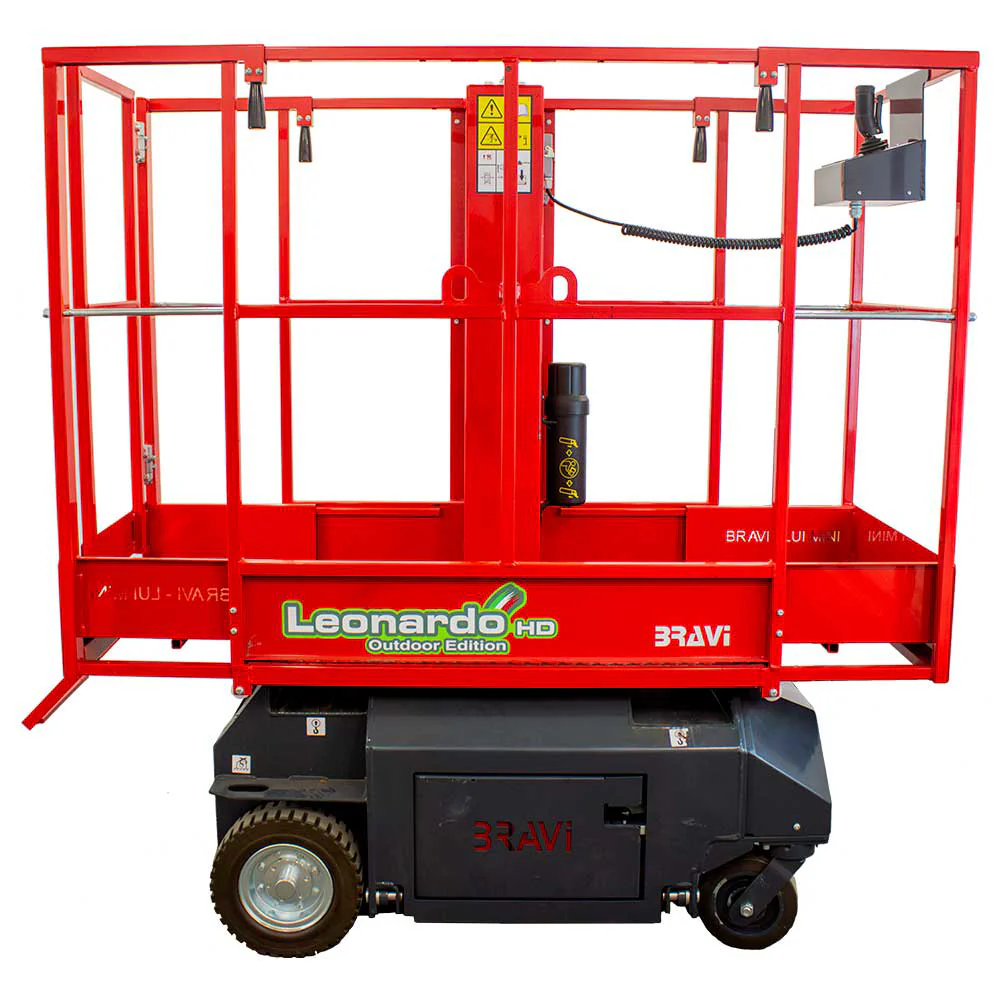

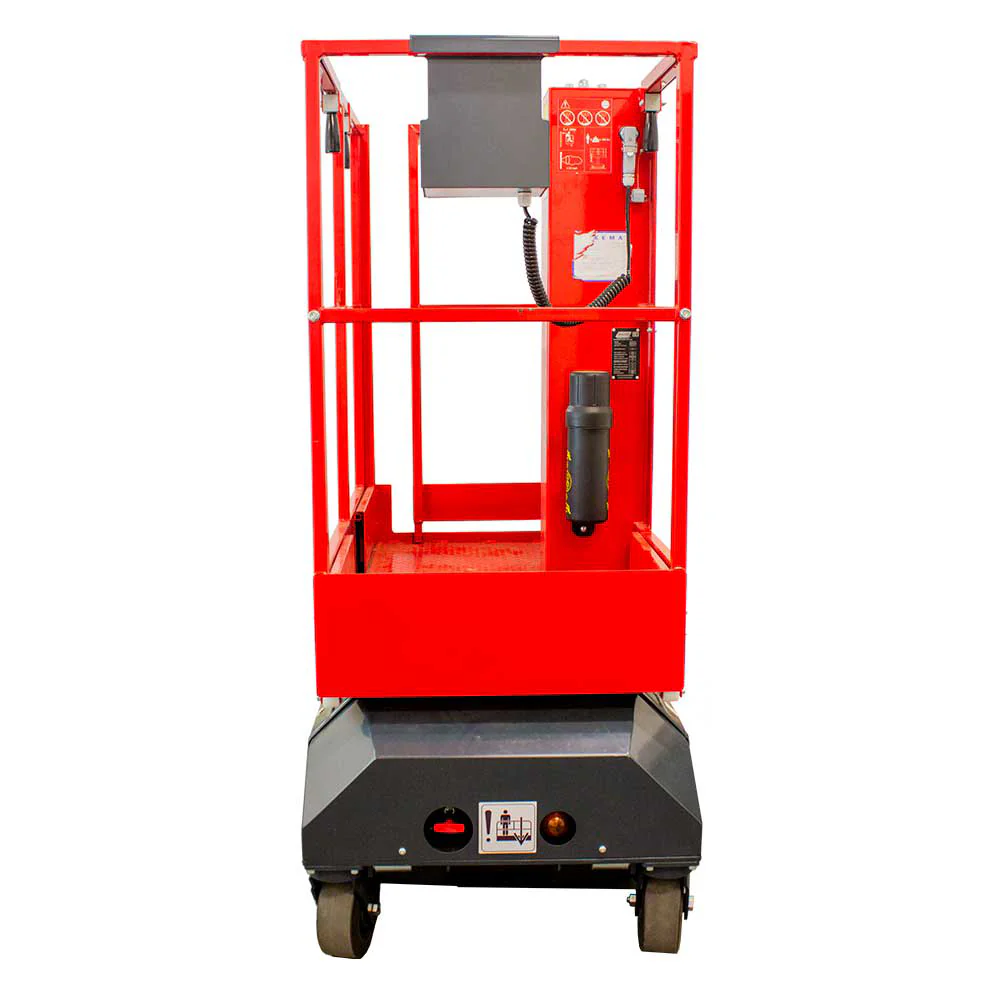

The Leonardo HD is the first mobile platform to arrive on site and the last to leave. With a working height of 5 meters (16.4 Feet), the Leonardo can easily be driven through doorways and into tight spaces that would typically require the use of scaffolding or ladders. The compact size, and versatile maneuverability, and a weight of only 1,124 lbs. allows the Leonardo HD to fit into most elevators and reach top floors effortlessly without requiring the operator to leave the platform.

Optional Attachments:

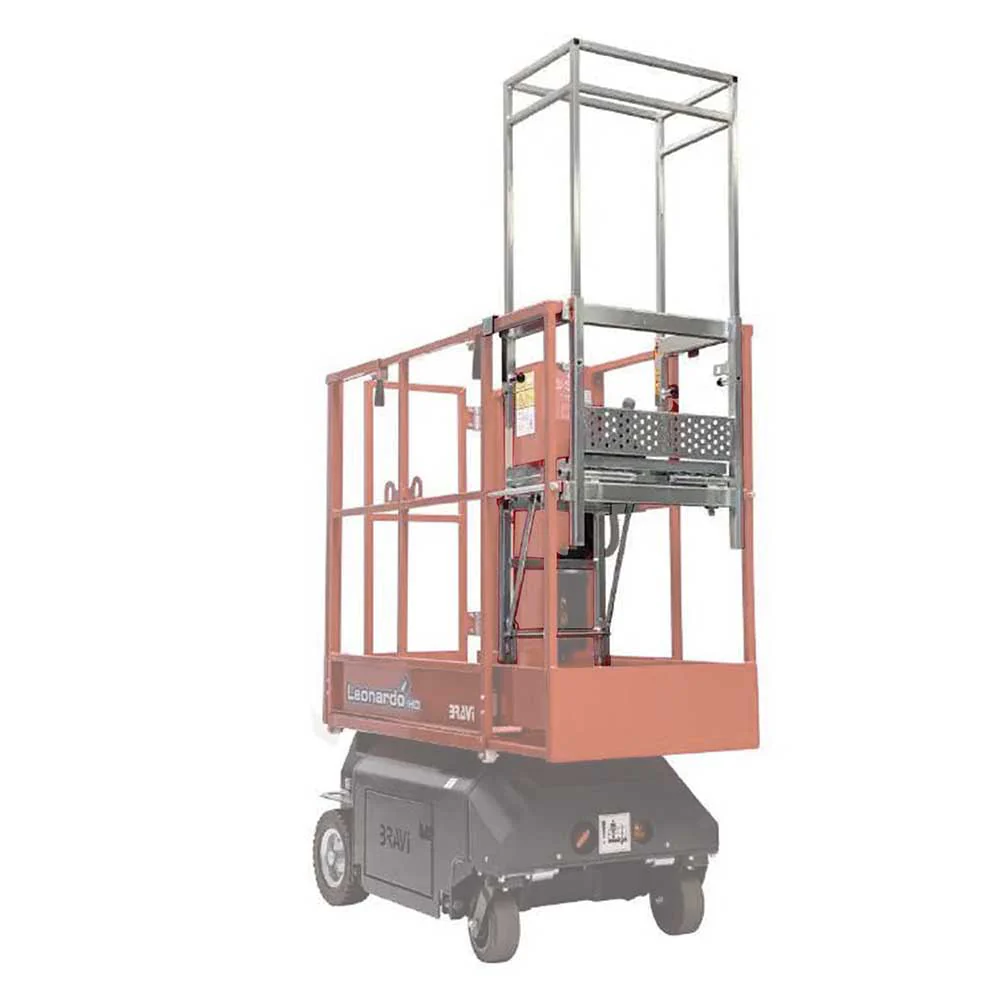

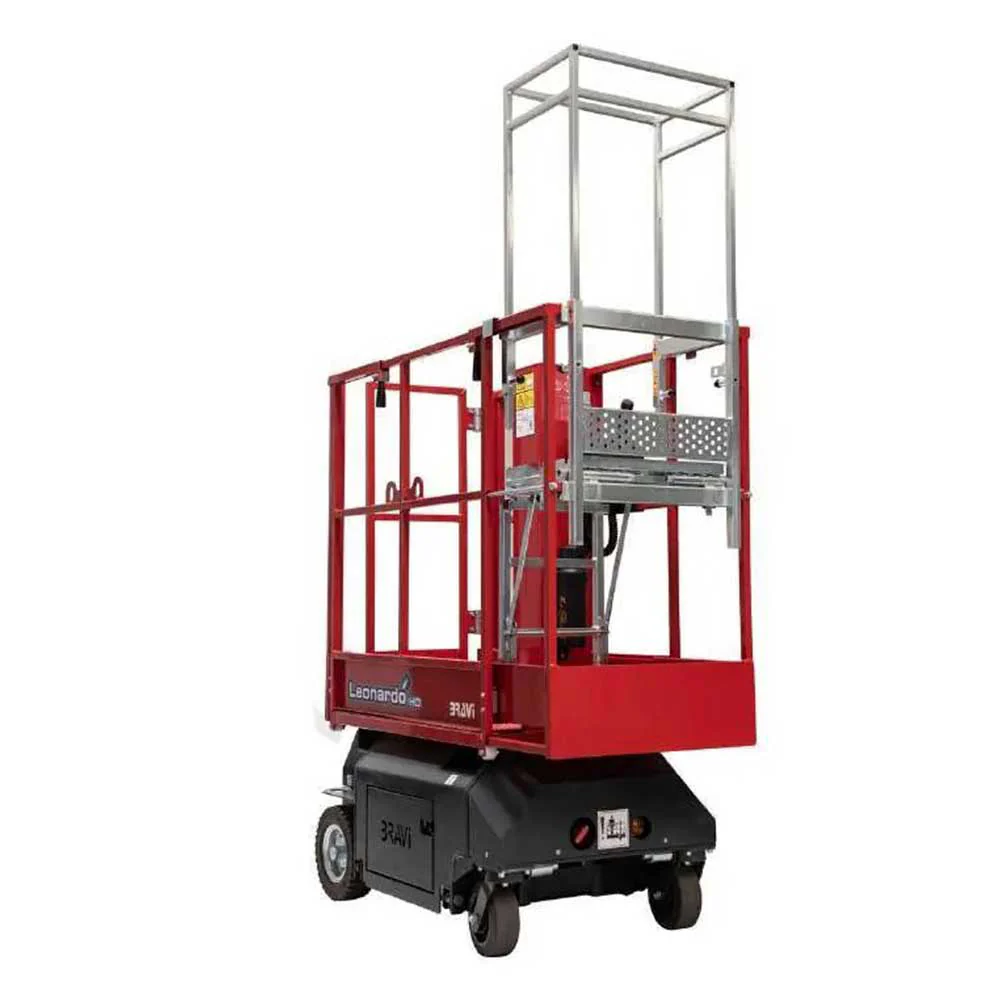

Inspection Attachment - This innovative inspection attachment is custom-made and certified for use on the Leonardo HD lift.

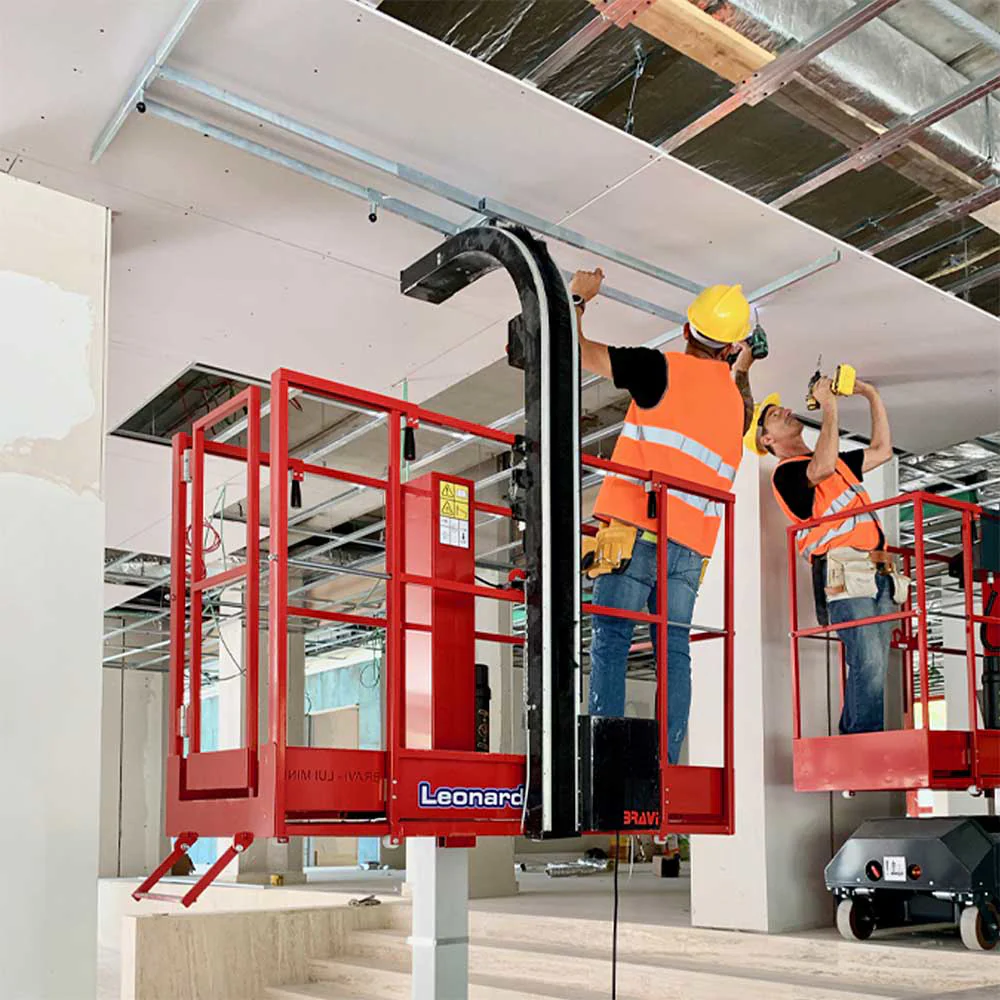

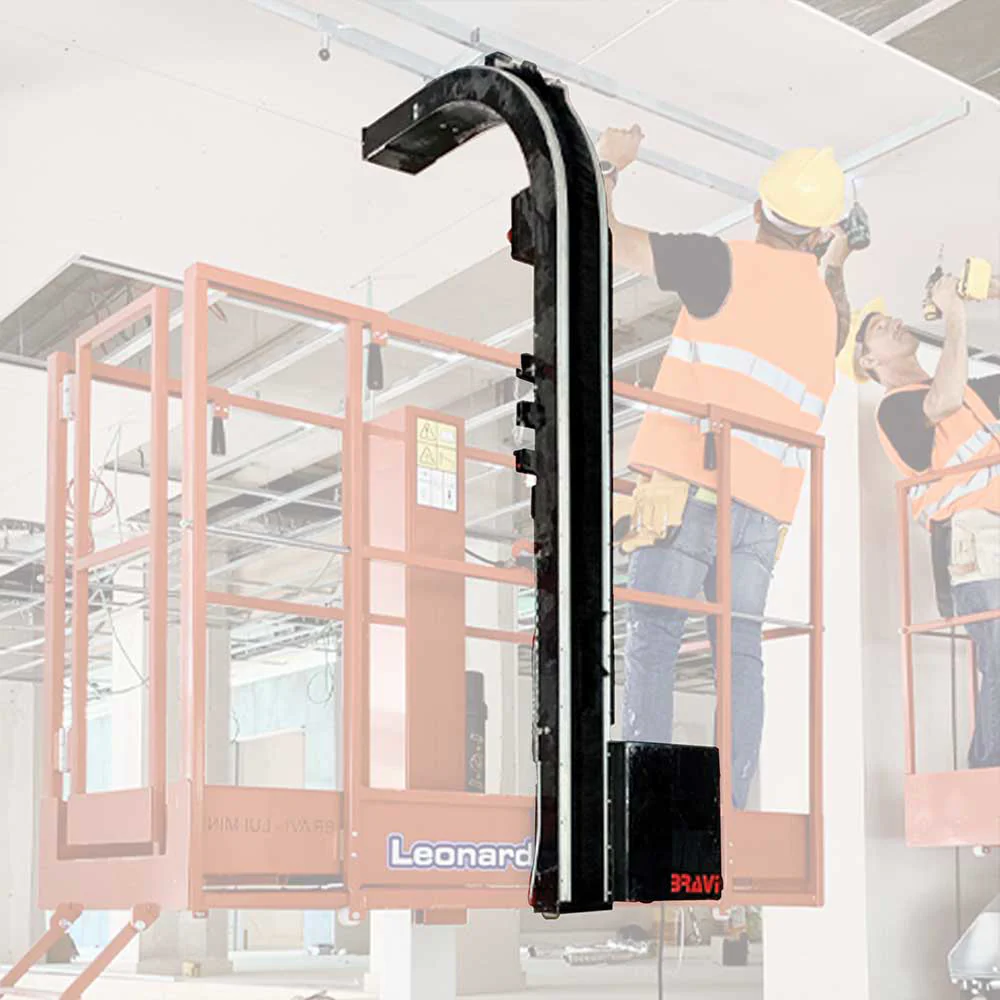

Drywall Lift Attachment - This drywall lift attachment increases efficiency in installing drywall ceiling panels, acoustic tiles, drystone walls and more.

Safety

LEONARDO moves quickly (3 km / h – lowered and 0.6 km / h – raised) and, thanks to its 180 kg capacity, lifts the operator with tools and materials, positioning it at the desired height. In this way, the risk of accidents due to the frequent manual loading of heavy materials is considerably reduced and the efficiency of each individual is maximized, avoiding unnecessary waste of time to carry out repositioning operations. Thanks to its amazing ground clearance of 87 mm, combined with an extremely compact footprint and locking system on the front wheels, LEONARDO HD is able to move in a straight line back and forth, allowing the operator to work in the tightest spaces, significantly decreasing at the same time the possibility of making mistakes.

Features and Benefits

Easily drives through doorways, tight spaces, and passenger elevators
Dual rollout decks provide outreach at both ends without sacrificing any platform capacity
Wheel locking device allows you to drive forward and backward in a straight line when accessing narrow aisles or driving on ramps
Wide drive and steer non-marking tires for reduced ground pressure and increased traction on tough jobs
Drivable at full height, fully loaded and with the platform fully extended
Unrestricted capacity of 397 lbs. reduces the need to climb up or down to load material
Build-in tilt sensor, flashing light, and audible alarm are all standard features
Maintenance-free lifting mass
Simple design and intuitive component-layout ensures a straightforward experience

For a more in depth look at this game changing piece of equipment, check out this article:

The Bravi-Platforms Leonardo HD Lift: Changing the Game of Heavy-Duty Lifting
