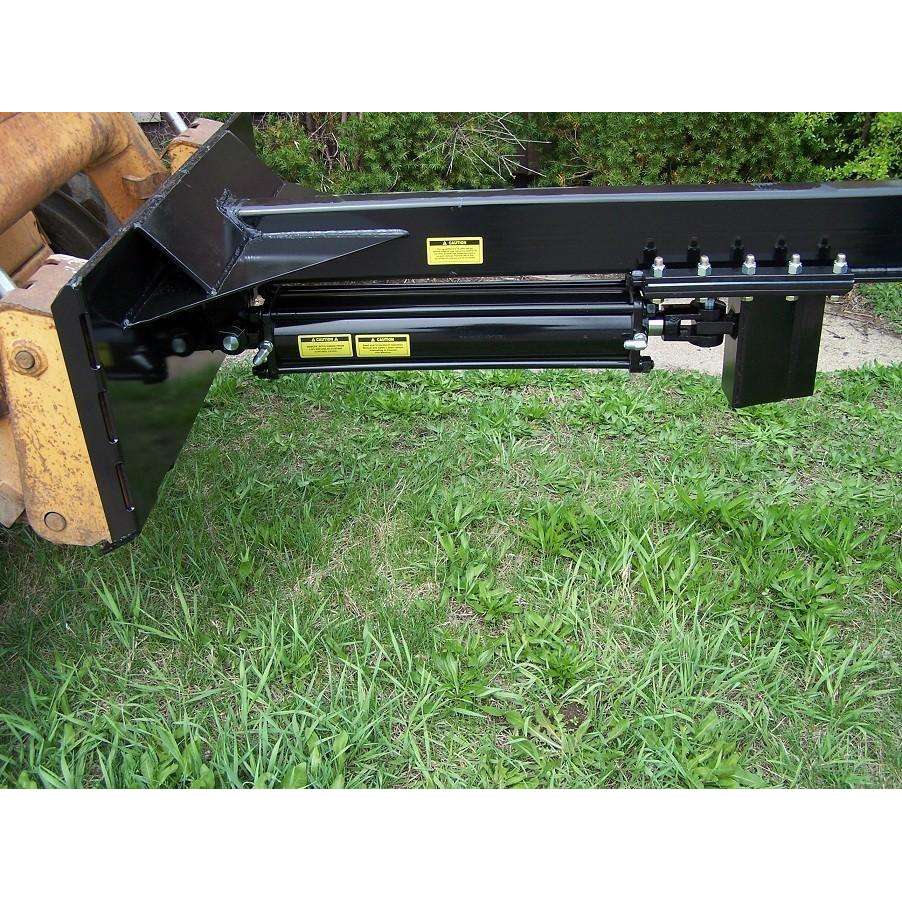

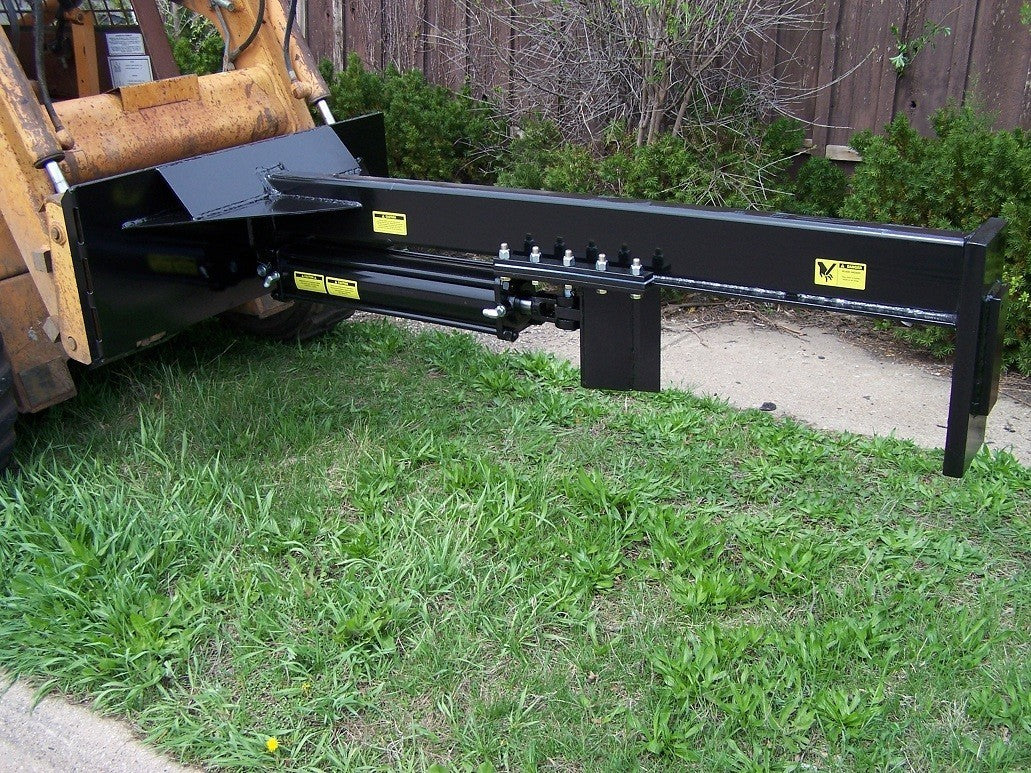

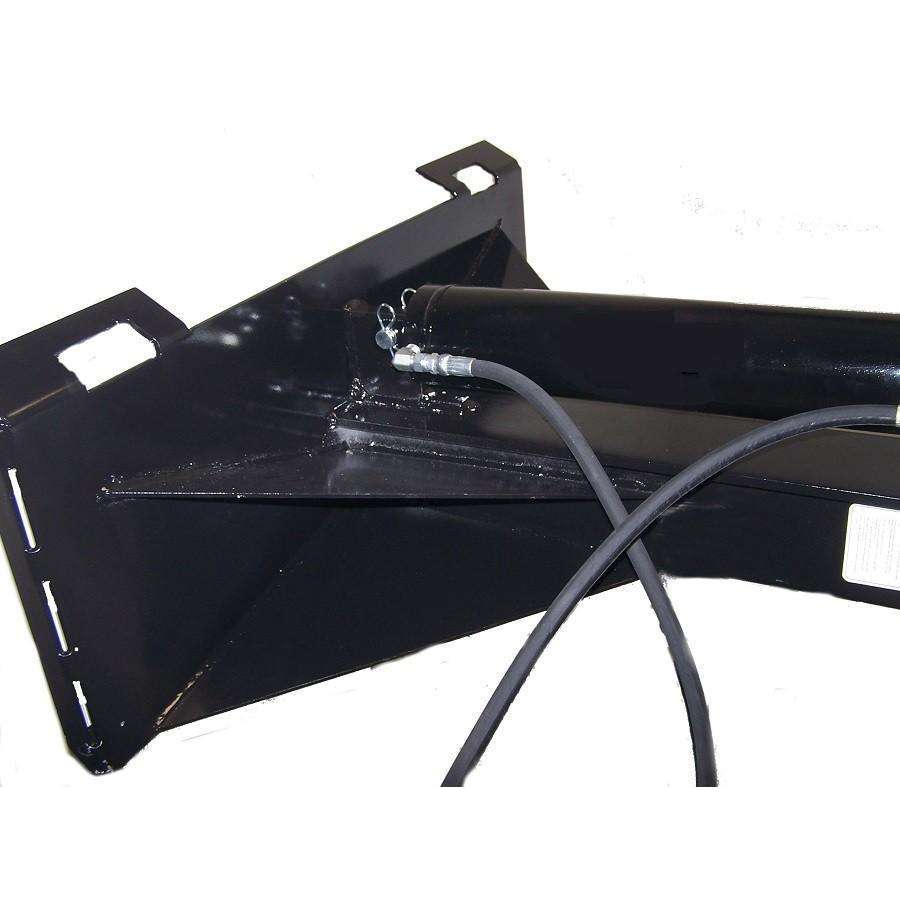

30 Ton Upside Down Skid Steer Log Splitter Attachment (SSUD30)

Heavy-Duty Skid Steer Log Splitter • 30 Tons of Force • Built for Big Logs

The RamSplitter SSUD30 turns your skid steer into a powerful, high-capacity log splitting machine built for serious work. Designed for commercial users, landowners, and high-volume firewood production, this upside-down skid steer splitter delivers 30 tons of ram force to handle large, heavy rounds without the back-breaking labor of lifting by hand.

With a 5" x 24" welded cylinder, durable 6" x 3" tubular steel beam, and a hardened 10" steel wedge, the SSUD30 is built to split logs up to 25 inches long and up to 40 inches in diameter with dependable, repeatable performance. Its universal skid steer mounting plate with 2 quick-attach lock handles makes hookup fast and convenient, while the included flat-face disconnects help simplify hydraulic connection.

Built in the USA and finished in durable black safety paint, the SSUD30 is a rugged, efficient solution for anyone who wants to put their skid steer to work processing firewood faster and more safely.

---

Key Features & Benefits

• 30 Tons of Splitting Force
  Delivers 60,000 lbs. of ram force for serious splitting power on large rounds and heavy wood.
• Upside Down Skid Steer Design
  Lets your skid steer do the heavy lifting so you can split logs directly from the ground.
• Handles Large Logs
  Designed for logs up to 25 inches long and up to 40 inches in diameter.
• Heavy-Duty Tubular Steel Beam
  Built with a rugged 6" x 3" tubular beam for strength and long-term durability.
• 5" x 24" Welded Cylinder
  Durable hydraulic cylinder with 2" rod provides dependable, commercial-grade performance.
• 10" Hardened Steel Wedge
  Tall single wedge built for strong, efficient splitting action.
• Universal Skid Steer Mount
  Includes 2 quick-attach lock handles for broad skid steer compatibility and easy setup.
• Flat-Face Disconnects Included
  Comes ready with hoses and connectors for easier installation.
• Log Cradle Included
  Adds convenience and helps improve control while splitting.
• Built for Heavy-Duty Use
  Great fit for commercial firewood operations, farms, acreage owners, and large-scale wood processing.
• Made in the USA
  Built with quality materials for dependable long-term use.

---

Optional Upgrades

• 4-Way Wedge
  Split logs into 4 pieces in one pass. This wedge bolts onto the side of the beam.
  If ordered, you receive both the standard single wedge and the 4-way wedge.
  Note: 4-way wedge reduces opening size by 3 inches.
• 30" Opening Upgrade
  Increase opening size by 6 inches with an optional 5" x 30" cylinder for longer wood.

---

Why Choose the SSUD30?

If you already own a skid steer and need a faster, more efficient way to process large logs, the RamSplitter SSUD30 is a powerful solution. Its heavy-duty construction, strong cylinder, universal mount, and included hydraulic connections make it a practical choice for serious wood splitting without the manual strain of traditional splitters.

---

Quick Specs

---

Important Note

If you have a Case 1840, please let us know at the time of order, as this unit requires a different mount.

Assembly Note

Some assembly is required. Product images may vary slightly if upgrades or running changes have been made.
