BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS300GX)
Skid Mount Hydraulic Power Packs – Honda GX Series

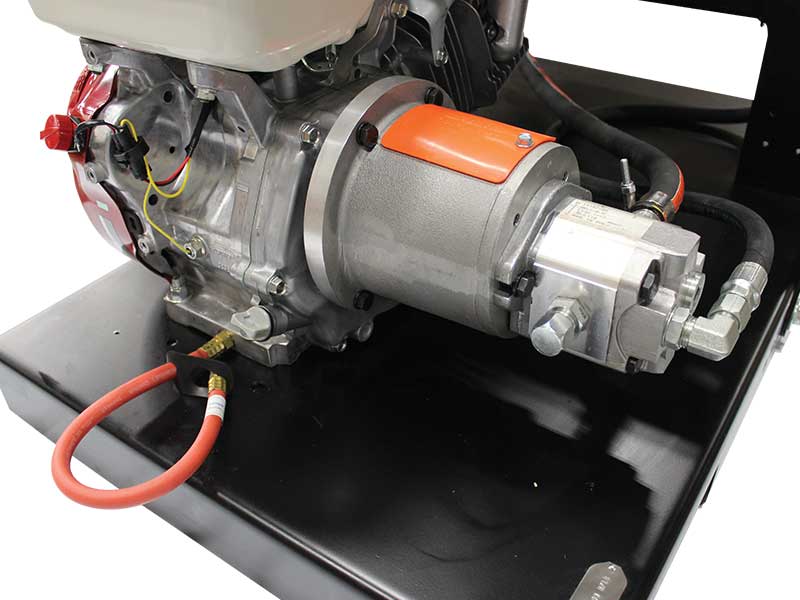

Powered by reliable Honda GX commercial engines, these skid mount power packs deliver dependable performance in demanding job site conditions. Designed for secure installation on trailers or other equipment, they provide portable hydraulic power where electricity or air is not available.
Ideal for single or double-acting cylinders, these units are built for versatility and durability, featuring a large hydraulic oil reservoir and essential system protections.
Key Features:
-
Securely mounts to trailers or fixed applications
-
Equipped with Honda GX commercial-grade engine
-
Spin-on hydraulic return filter with visual indicator for easy maintenance
-
Integrated system relief valve protects against overpressure
-
Compatible with single and double-acting hydraulic cylinders
-

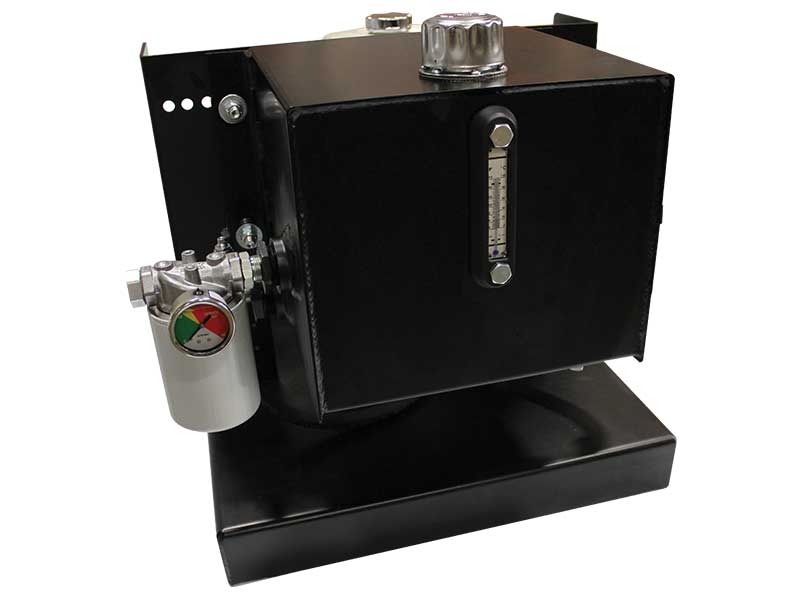

Large hydraulic oil tank with built-in sight and temperature gauge
-
Forklift accessible base for easy transport and installation
Detailed Specifications
| Category | Specification |
|---|---|
| Shipping | Free (standard ground shipping) |
| Manual | Download PDF |
| UPC | — |
| Engine | 390cc Honda GX390 |
| Start | Recoil |
| Flow Rate | 5 GPM |
| Pump Displacement | 0.36 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORBOutlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Hydraulic Tank Volume | Nominal: 9.7 galActual: 8.5 galUsable: 5.75 gal |
| Hydraulic Tank Material | 12 Gauge Steel |
| Tank Drain Port | 1/2" NPT |
| Hydraulic Valve Pressure | 3,000 PSI |
| Valve Type | Optional kits available (see product options) |
| Valve Ports | Inlet: 12 ORB (Plumbed to Reservoir)Outlet: 8 Male JIC Adapter Installed |
| Weight (Dry) | 240 lbs |
| Dimensions (LĂ—WĂ—H) | 44" Ă— 24.5" Ă— 26" |
| Warranty | 2 Years |
**Optional Rush Processing - We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays).  Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery. If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.
Optional Add-Ons
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
Original: $3,879.00
-65%$3,879.00
$1,357.65
Description
Skid Mount Hydraulic Power Packs – Honda GX Series
Powered by reliable Honda GX commercial engines, these skid mount power packs deliver dependable performance in demanding job site conditions. Designed for secure installation on trailers or other equipment, they provide portable hydraulic power where electricity or air is not available.
Ideal for single or double-acting cylinders, these units are built for versatility and durability, featuring a large hydraulic oil reservoir and essential system protections.
Key Features:
-
Securely mounts to trailers or fixed applications
-
Equipped with Honda GX commercial-grade engine
-
Spin-on hydraulic return filter with visual indicator for easy maintenance
-
Integrated system relief valve protects against overpressure
-
Compatible with single and double-acting hydraulic cylinders
-
Large hydraulic oil tank with built-in sight and temperature gauge
-
Forklift accessible base for easy transport and installation
Detailed Specifications
| Category | Specification |
|---|---|
| Shipping | Free (standard ground shipping) |
| Manual | Download PDF |
| UPC | — |
| Engine | 390cc Honda GX390 |
| Start | Recoil |
| Flow Rate | 5 GPM |
| Pump Displacement | 0.36 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORBOutlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Hydraulic Tank Volume | Nominal: 9.7 galActual: 8.5 galUsable: 5.75 gal |
| Hydraulic Tank Material | 12 Gauge Steel |
| Tank Drain Port | 1/2" NPT |
| Hydraulic Valve Pressure | 3,000 PSI |
| Valve Type | Optional kits available (see product options) |
| Valve Ports | Inlet: 12 ORB (Plumbed to Reservoir)Outlet: 8 Male JIC Adapter Installed |
| Weight (Dry) | 240 lbs |
| Dimensions (LĂ—WĂ—H) | 44" Ă— 24.5" Ă— 26" |
| Warranty | 2 Years |
**Optional Rush Processing - We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays).  Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery. If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.
Optional Add-Ons
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
