BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS310GX)
BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS310GX)
Honda GX390 Power • 7 GPM Hydraulic Flow • Trailer / Jobsite Ready
The BravePro Hydra Buddy HBHS310GX is a heavy-duty skid-mount hydraulic power pack built for job sites and mobile applications where air or electric power is not available. Powered by a reliable Honda GX390 commercial engine, this hydraulic power pack mounts securely to a trailer or other application and provides dependable hydraulic performance for a wide range of field uses.
Designed for compatibility with single-acting or double-acting cylinders, the Hydra Buddy is a practical solution for contractors, equipment operators, and mobile hydraulic applications that require portable, self-contained hydraulic power. Its large steel hydraulic tank, spin-on return filter, system relief valve, and forklift-accessible skid design make it a durable and user-friendly choice for demanding environments.
Key Features & Benefits
-

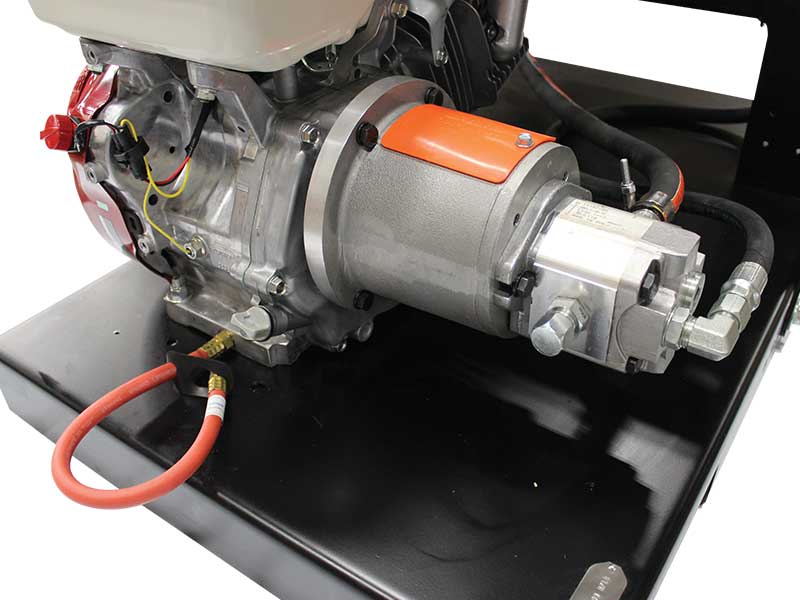

Honda GX390 Commercial Engine
Dependable 390cc Honda GX390 engine delivers proven power and reliability for jobsite hydraulic needs. -
7 GPM Hydraulic Flow
Provides solid hydraulic output for a wide range of trailer-mounted and mobile hydraulic applications. -
Skid-Mount Design
Built to mount securely to a trailer or custom setup for stable, portable hydraulic power. -
Compatible with Single or Double-Acting Cylinders
Flexible design supports a variety of hydraulic cylinder configurations. -

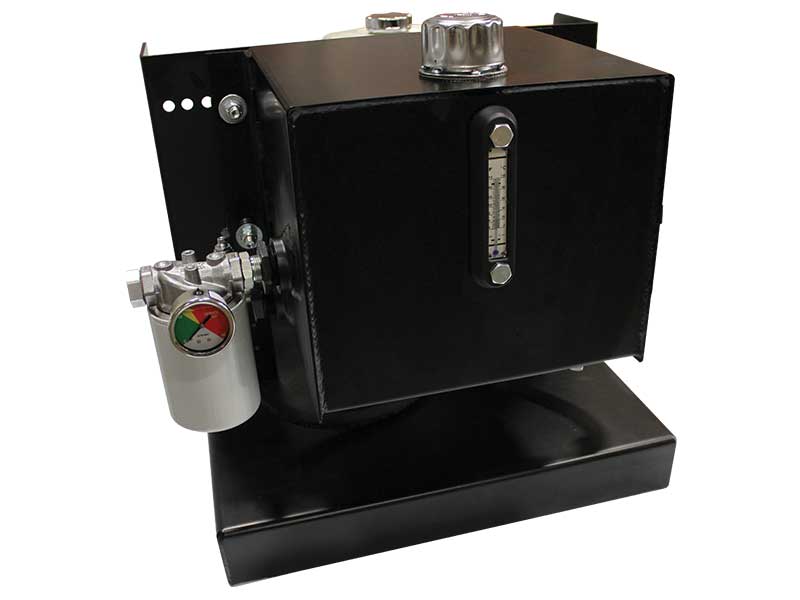

Large Hydraulic Oil Tank
Steel reservoir includes a sight / temperature gauge for easier monitoring of fluid level and operating conditions. -
Spin-On Hydraulic Return Filter with Indicator
Helps protect the system and makes maintenance easier. -
System Relief Valve
Added protection for safer hydraulic operation. -
Forklift Accessible
Easy to move, position, and install as needed. -
Heavy-Duty Steel Tank Construction
Built with 12-gauge steel for long-term durability. - HBHS310GX Manual
Quick Specs
| Specification | Details |
|---|---|
| Model | HBHS310GX |
| Engine | Honda GX390 / 390cc |
| Start Type | Recoil |
| Flow Rate | 7 GPM |
| Pump Displacement | .51 CIR |
| Pump Rotation | Clockwise |
| Pump Ports | Inlet: 1-1/16-12 ORB / Outlet: 7/8-14 ORB |
| Hydraulic Tank Volume | Nominal: 9.7 gal / Actual: 8.5 gal / Useable: 5.75 gal |
| Hydraulic Tank Material | 12-Gauge Steel |
| Hydraulic Tank Drain Port | 3/4" NPT |
| Hydraulic Valve Pressure | 2,000 PSI |
| Hydraulic Valve Type | Optional kits available |
| Hydraulic Valve Connections | Inlet: 12 ORB plumbed to reservoir / Outlet: 8 Male JIC adapter installed |
| Weight (Dry) | 240 lbs |
| Dimensions (L x W x H) | 44" x 24.5" x 26" |
| Warranty | 2 Years |
Ideal For
- Trailer-mounted hydraulic power
- Job sites without electrical or air power
- Single-acting cylinder applications
- Double-acting cylinder applications
- Mobile hydraulic systems
- Contractors and equipment operators needing portable hydraulic power
**Optional Rush Processing - We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays). Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery. If we don't get it shipped out by next business day its simple, you don't get charged the rush processing fee.
Optional Add-Ons
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
