Lumber Jack™ 25-Ton Gas Log Splitter (YTL-590-517)

Lumber Jack™ log splitters are available in a range of sizes to suit any sized project. Each splitter is equipped with a trailer hitch for easy towing. Capable of splitting rounds in both horizontal and vertical positions, our 25-ton log splitter boasts a hasty 11.5 second cycle time and time-saving automatic cylinder and valve return for quickly and safely reducing hardwood or softwood rounds to firewood. The 25-ton log splitter has a hardened steel eight inch wedge and built-in log cradle for simpler splitting. Powered by a 196 cubic centimeter 6.5 horse power Kohler® engine and a 6.5 gallon hydraulic capacity, our 25-ton log splitter will outperform and outlast the competition.

Specifications

• Model: YTL-590-517
• Splitting Force: 25 tons

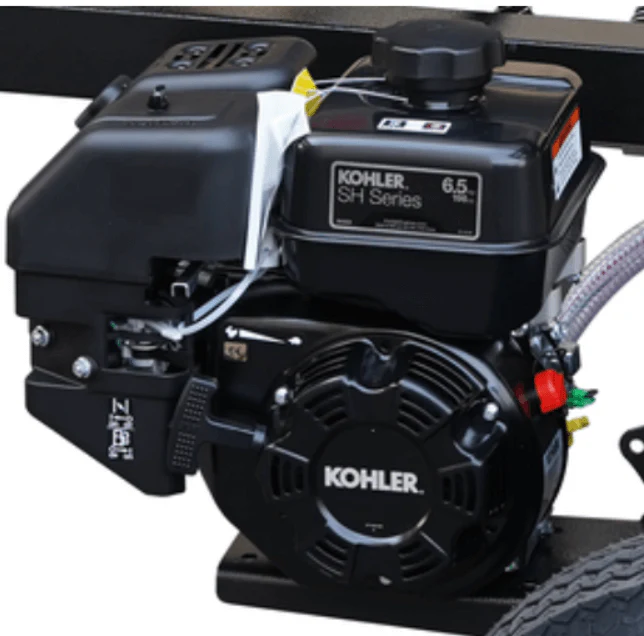

• Engine: Kohler 196cc EPA & CARB
• Maximum Log Length: 26"
• Operating Position: horizontal or vertical
• Cylinder: 4-1/8" diameter x 24-1/2" stroke

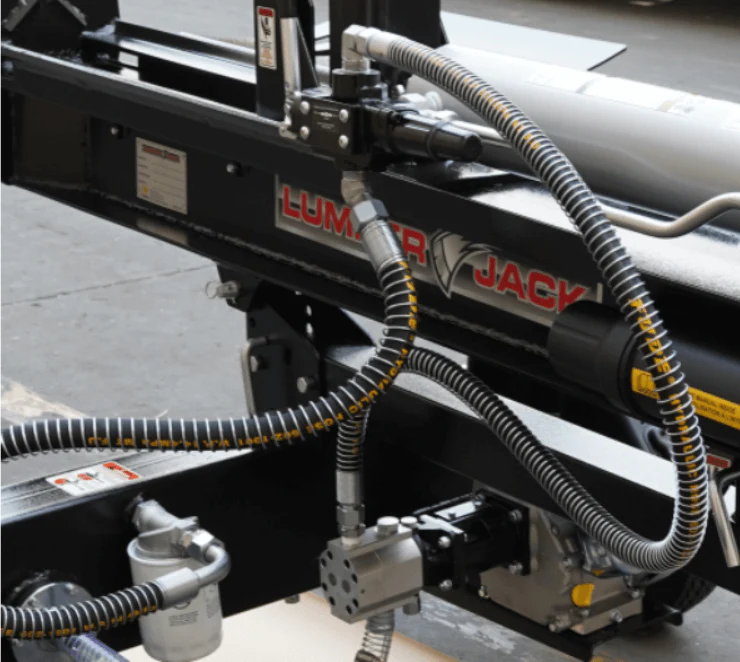

• Gear Pump: 2-stage, 14 GPM
• Hydraulic Capacity: 4-gallon max

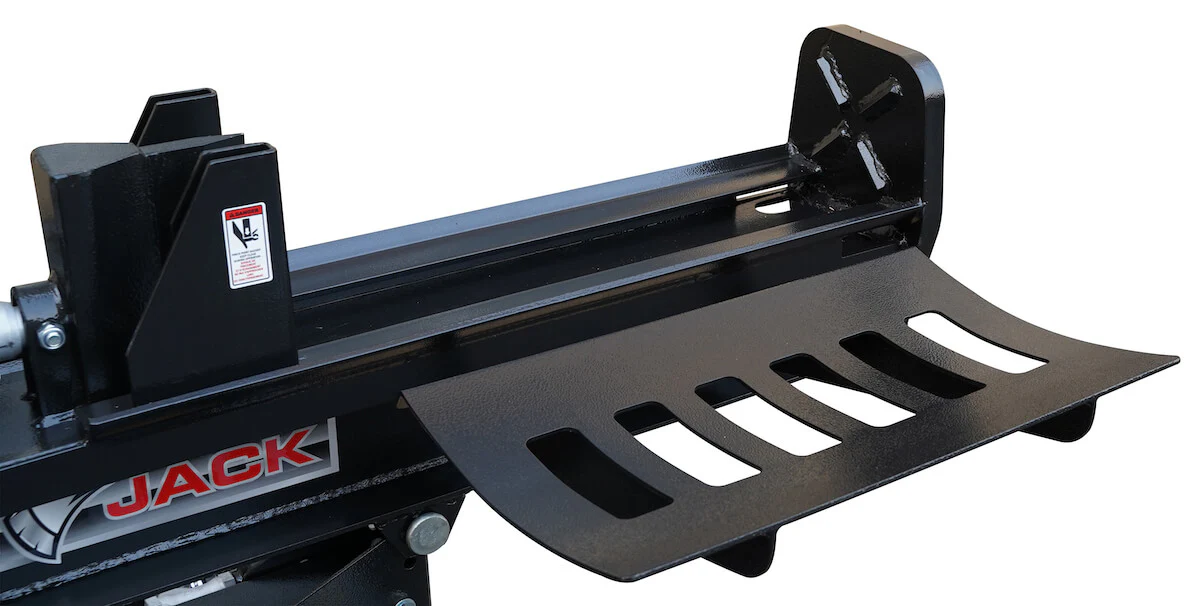

• Wedge Height: 8"
• Cycle Time: 11.5 seconds

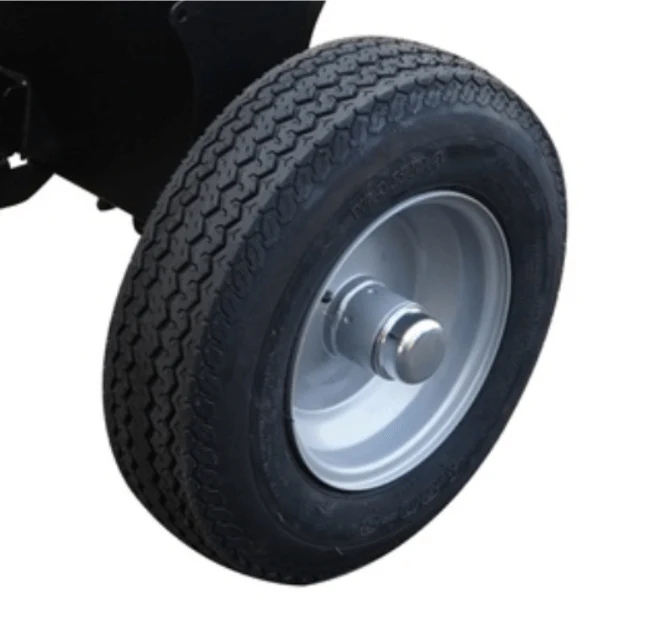

• Wheels: 16" pneumatic DOT certified
• Max Towing Speed: 45 MPH

Documentation

• Official Product Manual
• Warranty Details
