NorthStar Trailer-Mounted Hot Water Pressure Washer — 200-Gallon Tank, 4000 PSI, Honda GX630 V-Twin

Take hot water cleaning anywhere with NorthStar’s rugged trailer-mounted pressure washer system. Featuring a self-contained 200-gallon water tank, commercial-grade Honda GX630 V-twin engine, and reliable CAT direct drive pump, this unit is built for demanding jobs where electricity and running water aren’t available. Perfect for remote worksites, fleet washing, heavy equipment cleaning, and industrial applications.

---

Key Features & Benefits

• 🔥 Hot Water Power Anywhere – Self-contained design with 200-gallon tank for total job site independence.

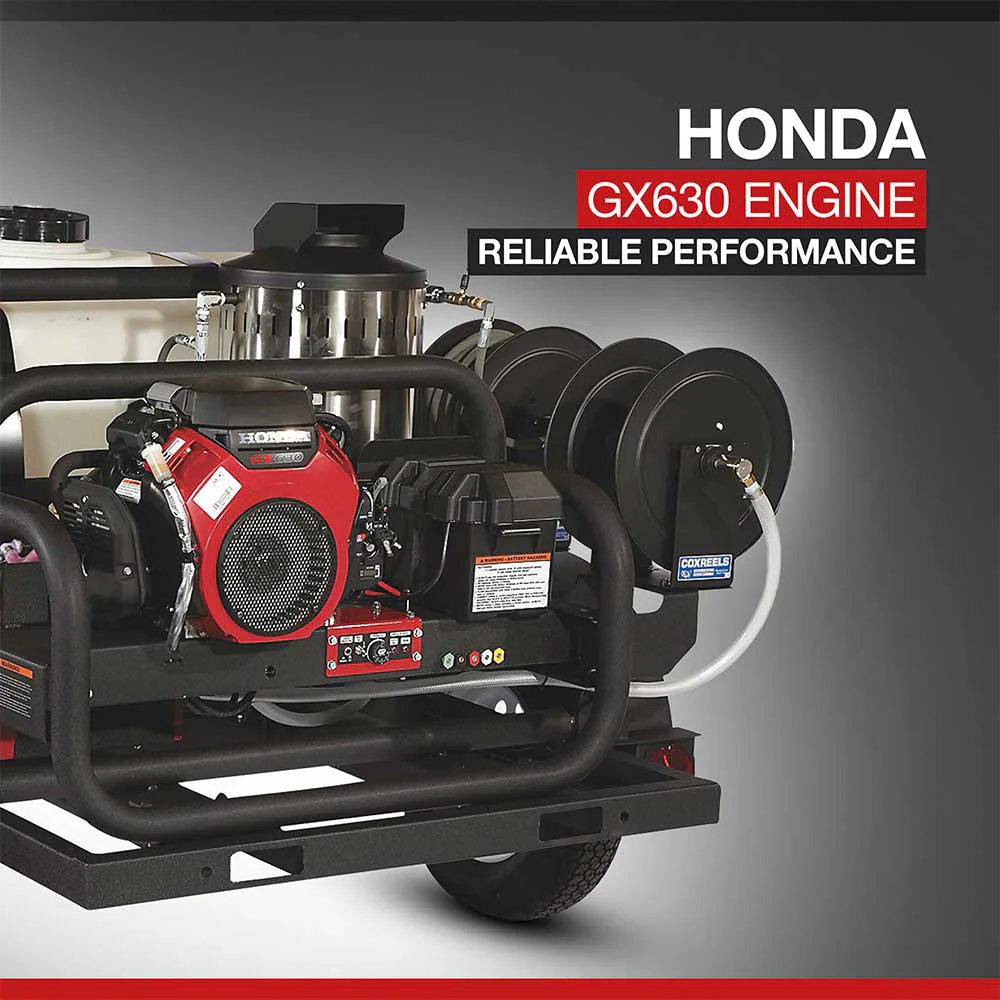

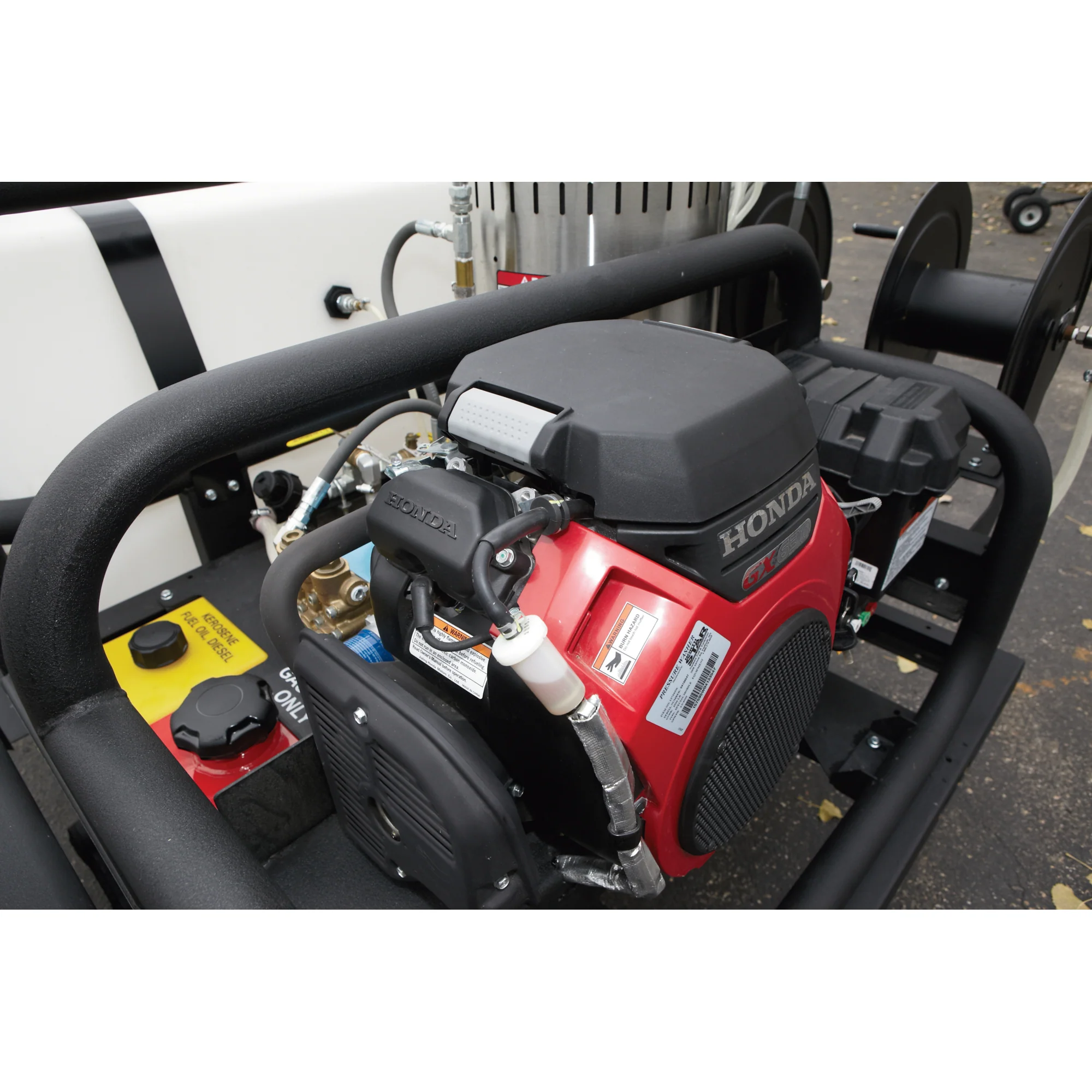

• 🛠 Honda GX630 V-Twin Engine – Legendary reliability, smooth power, and long engine life.

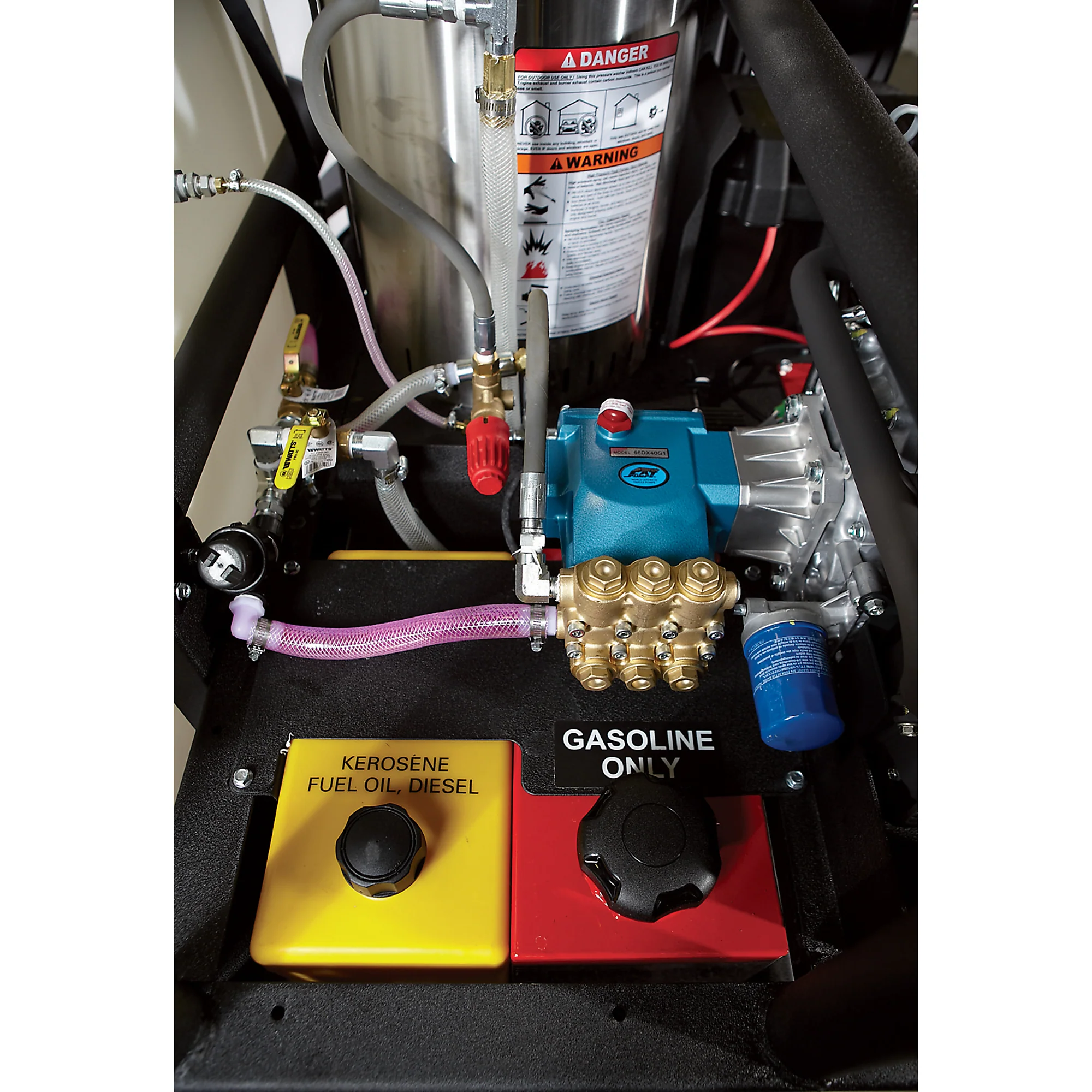

• 💧 CAT 66DX Pump – Proven 4000 PSI performance with brass manifold & ceramic plungers.

• 🚛 Heavy-Duty Trailer – 3,500-lb. capacity, torsion axle suspension, DOT lights, jack with caster & fenders.

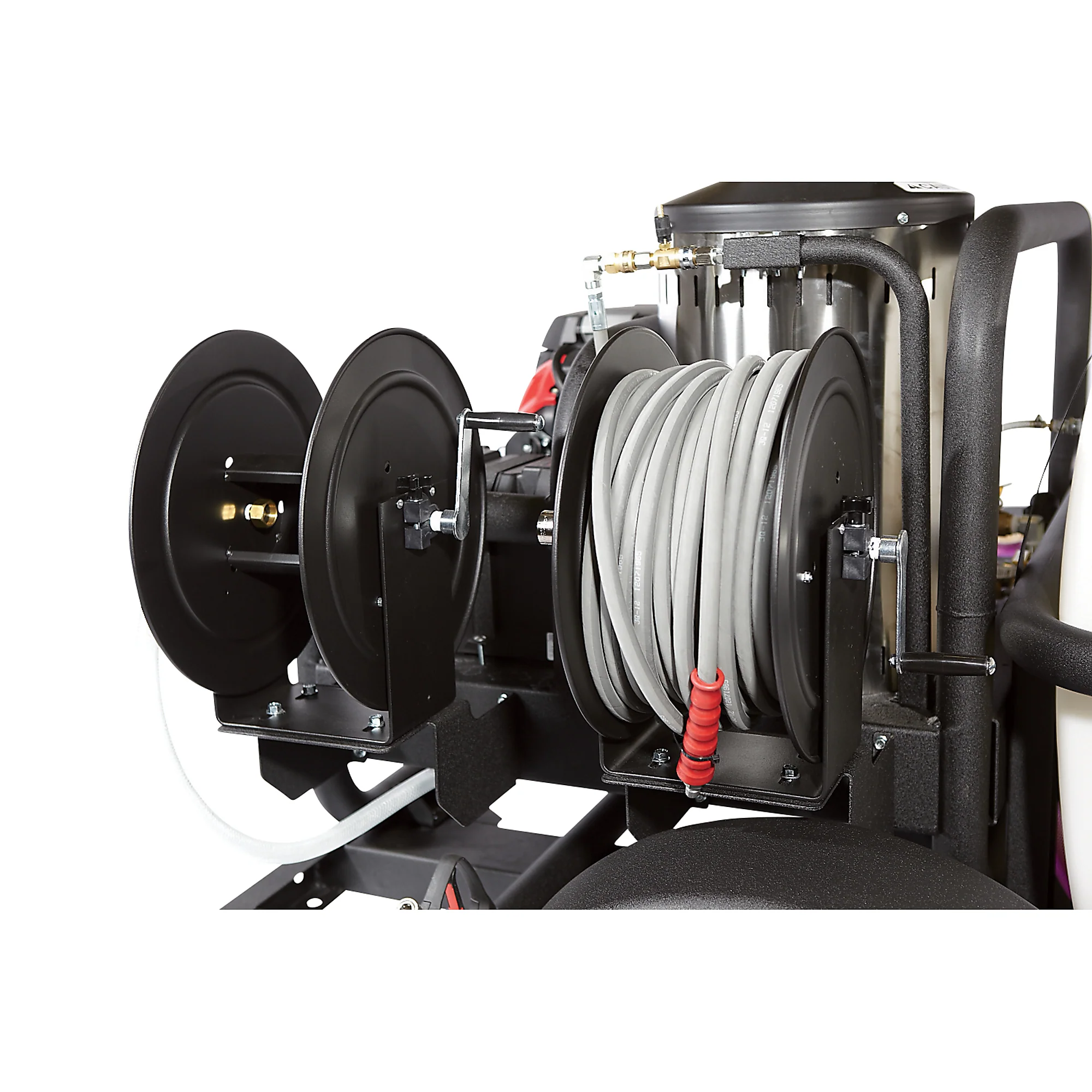

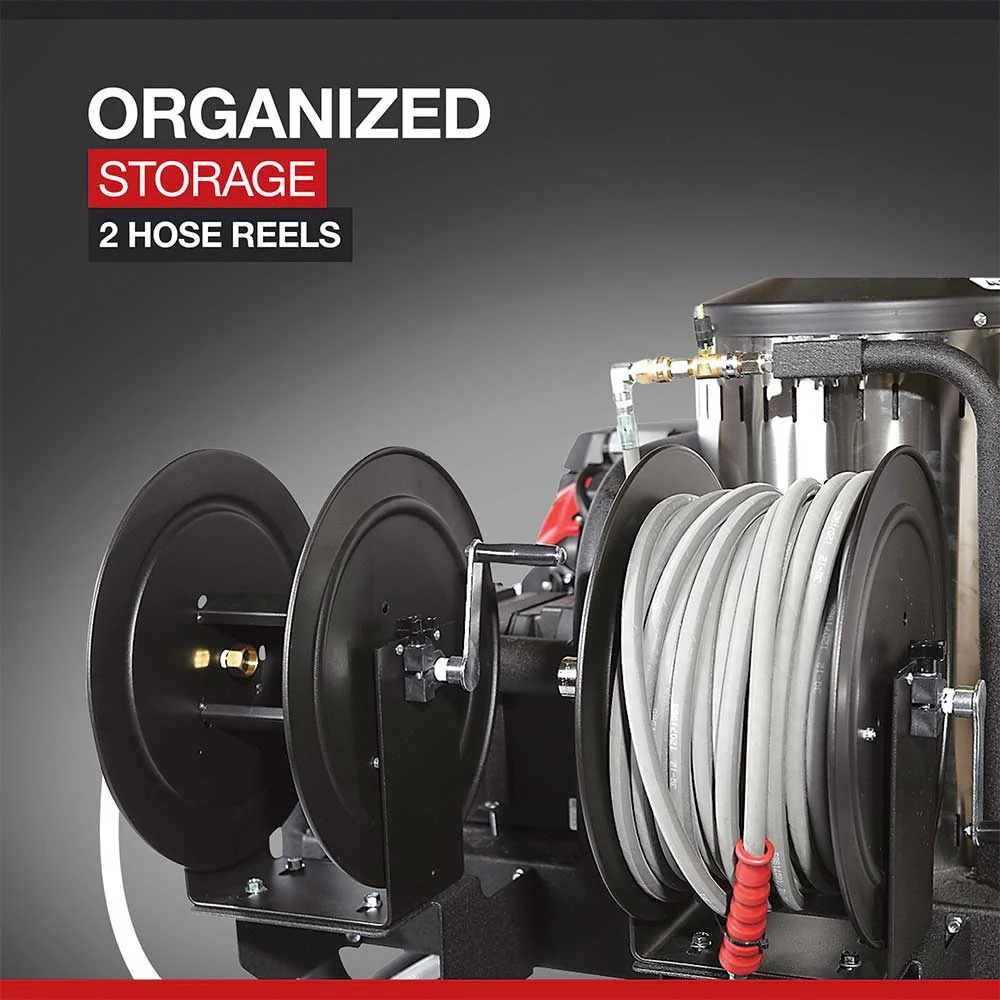

• 🌀 100ft. Nonmarking High-Pressure Hose – Includes 2 hose reels (garden hose + pressure hose).

• 🔒 Durability Built In – Forged brass pump manifold, cast iron sleeves, schedule 80 coil with stainless wrap.

• 🎛 Easy to Operate – Adjustable thermostat, sight glass for oil check, pressure switch burner control.

• ✅ Smart Diagnostics – Indicator lights show status of key components for quick troubleshooting.

• ⚡ Safe & Convenient – Easy Start feature prevents start-up pressure build-up; rear hose-entry gun keeps hose out of the way.

---

Detailed Specifications

Feature	Specification
Brand / Item #	NorthStar® / 157595

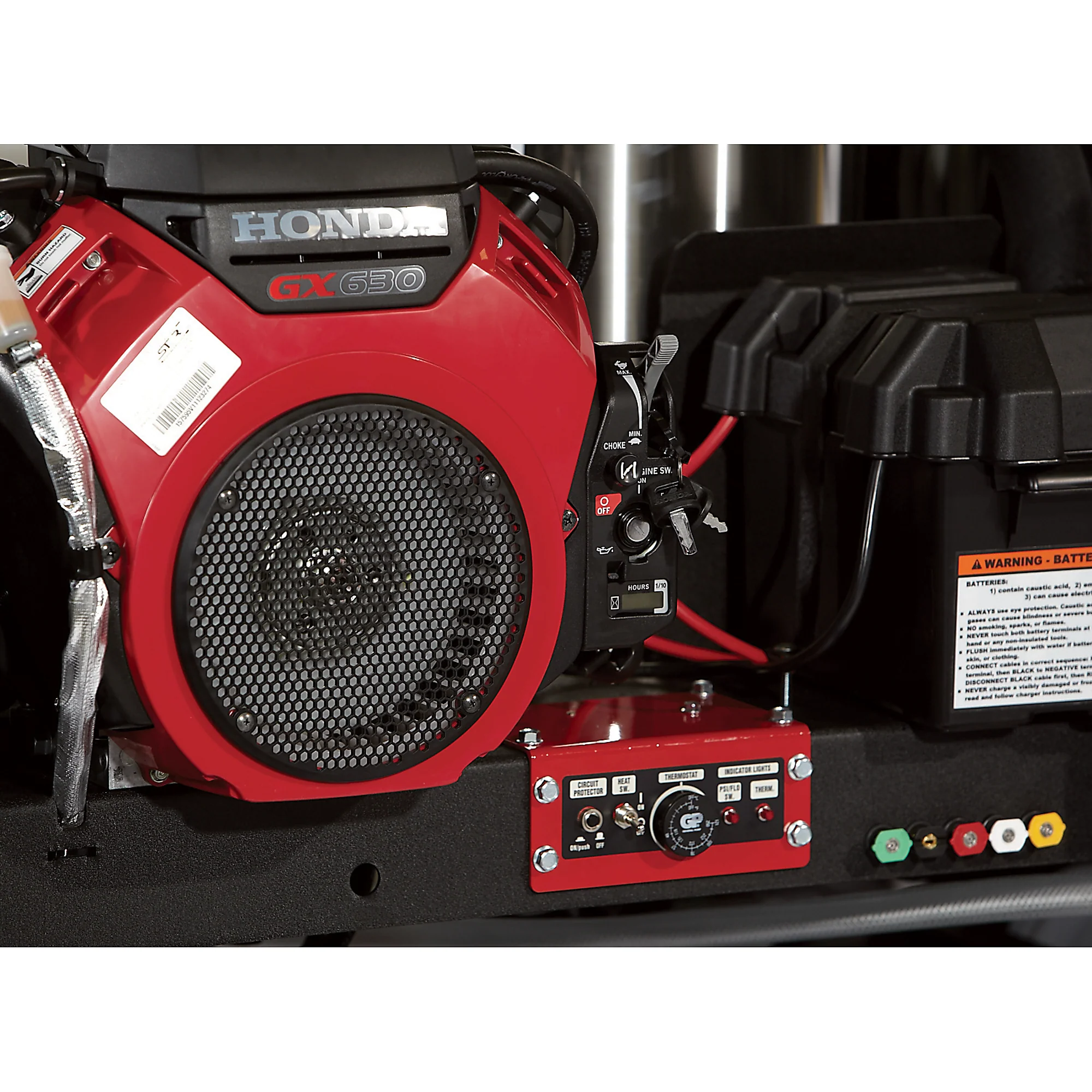

Engine	Honda GX630 V-Twin, 630cc (Electric & Recoil Start)
Pump	CAT 66DX Direct Drive Pump, forged brass manifold, ceramic plungers
Flow Rate	4.0 GPM

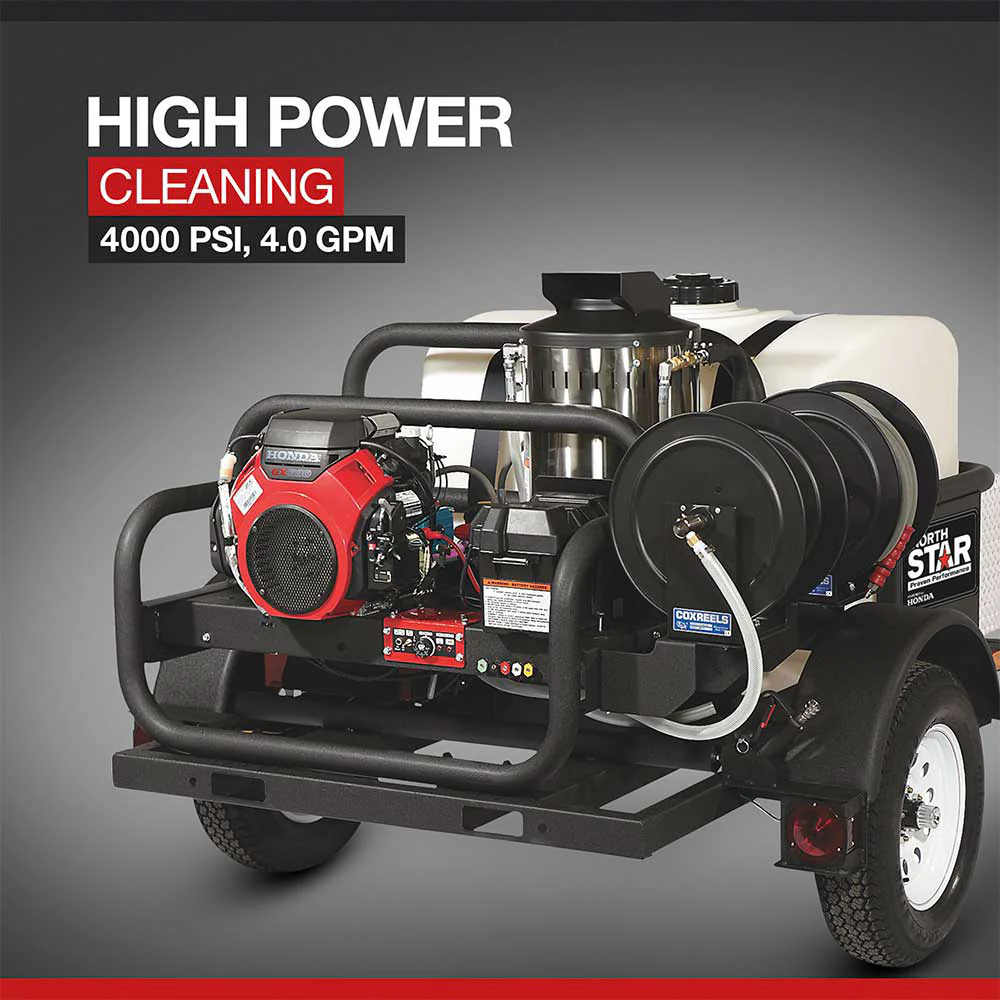

Pressure Rating	4,000 PSI
Drive Style	Direct Drive
Water Tank	200 Gallons, poly construction
Heating Coil	1/2 in. Schedule 80 with stainless steel wrap, ceramic fiber refractory combustion chamber
Burner Control	Pressure switch, Parker Hannifin Racor fuel filter & water separator
Temperature (Inlet / Outlet)	Max 140°F / 210°F
Hoses & Reels	100 ft. x 3/8 in. gray non-marking hose with reel; 3/4 in. garden hose reel (hose not included)

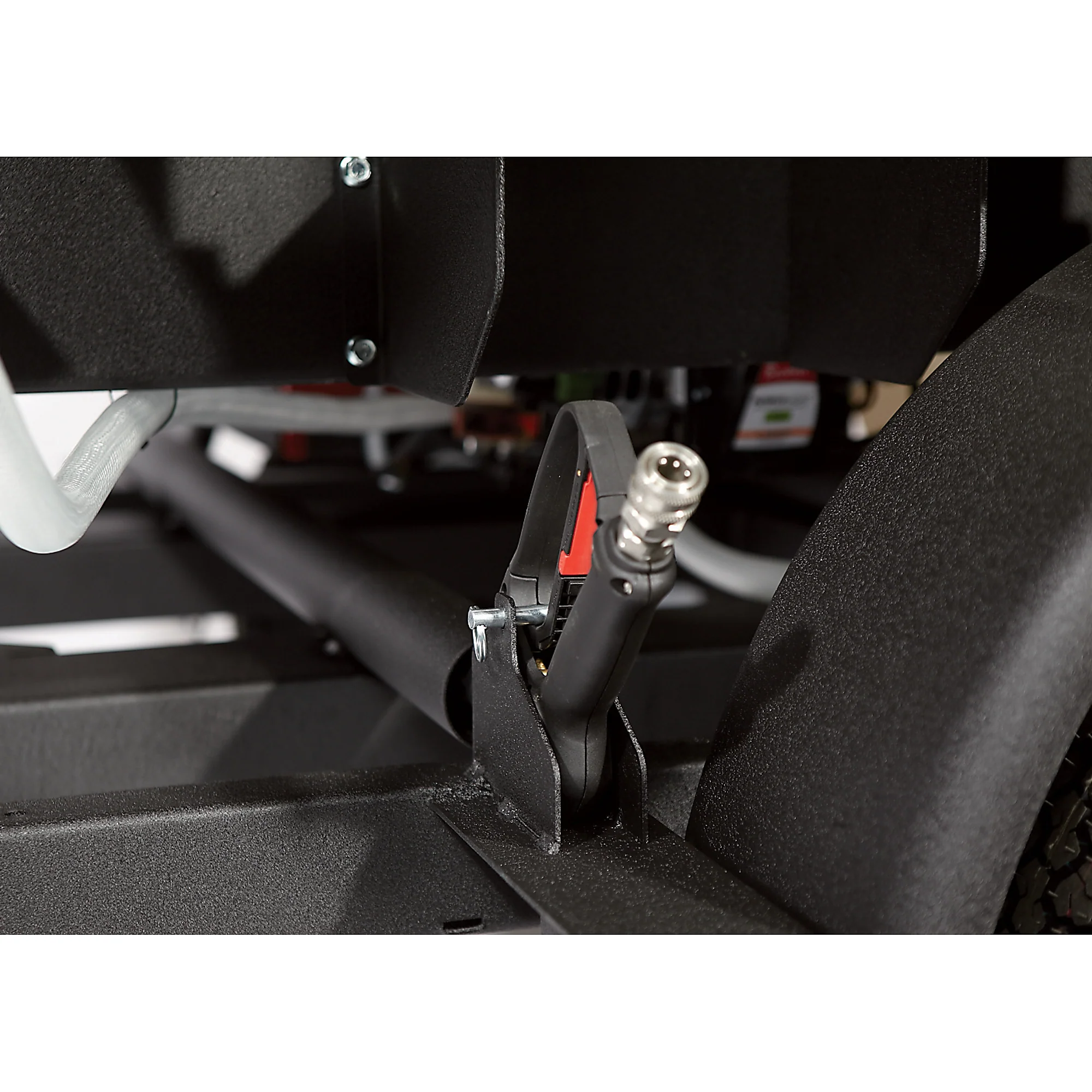

Spray Gun	Rear hose-entry with split lance
Nozzles	5 Quick-Connect Spray Tips
Chemical Injector	Yes
Trailer	3,500 lb. rated (DOT approved), torsion axle suspension, lights, fenders, jack with caster
Wheels / Tires	15 in. diameter
Frame	Heavy-duty with integrated tool storage box
Controls	Adjustable pressure, adjustable thermostat, diagnostic lights, Easy Start
Connections	22mm quick-connect couplers
Safety Features	Relief valve, cast iron sleeves, sight glass oil check
Pump Oil	Included
Dimensions (L × W × H)	129 × 75.75 × 60 in.
Shipping Weight	1,460 lbs.
Warranty	24 Months Parts & Labor

Why Choose NorthStar?

NorthStar products are engineered for professional use, backed by premium components (Honda engines, CAT pumps, Parker filtration, stainless fittings) that are designed to last years under heavy load. This trailer-mounted unit eliminates downtime by combining portability, hot water cleaning, and self-contained water supply into one solution.
