Ramsplitter H34 Log Splitter 34 Ton with Electric Start 13 HP Honda GX390 New (H34-3-E)

Free Shipping! - No Sales Tax (Most States)

Ramsplitter H34 Log Splitter – 34 Ton, 13 HP Honda

High-Performance, Commercial-Grade Log Splitter for Firewood, Logging, and Forestry Applications.

🔧 Product Overview

The Ramsplitter H34-3-E Horizontal Wood Splitter delivers professional-grade performance with a powerful 13 HP Electric Start Honda GX390 engine and 34-ton hydraulic ram. Designed for heavy-duty firewood splitting, logging operations, and forestry work, this machine effortlessly handles large, dense logs with precision and power. Whether you're managing a commercial firewood business or prepping for the winter season, the H34 gets the job done faster and with less fatigue.

✅ Key Features

• 34 Tons of Splitting Force – Crushes hardwood logs up to 25" long and 40" in diameter

• Reliable Electric Start Honda GX390 Engine – Legendary 13 HP performance, trusted for commercial use

• Heavy-Duty Hydraulic System – Features a 24″ stroke, 22 GPM pump, and 15-gallon hydraulic tank

• Ergonomic Design – 32" working height, easy log loading, and quick 14-second cycle time

• Log lift capacity - 500lbs makes handling large logs easier and safer.

• Tow-Ready – Comes with a 2" ball hitch, 12″ wheels, and 65 MPH towing capacity

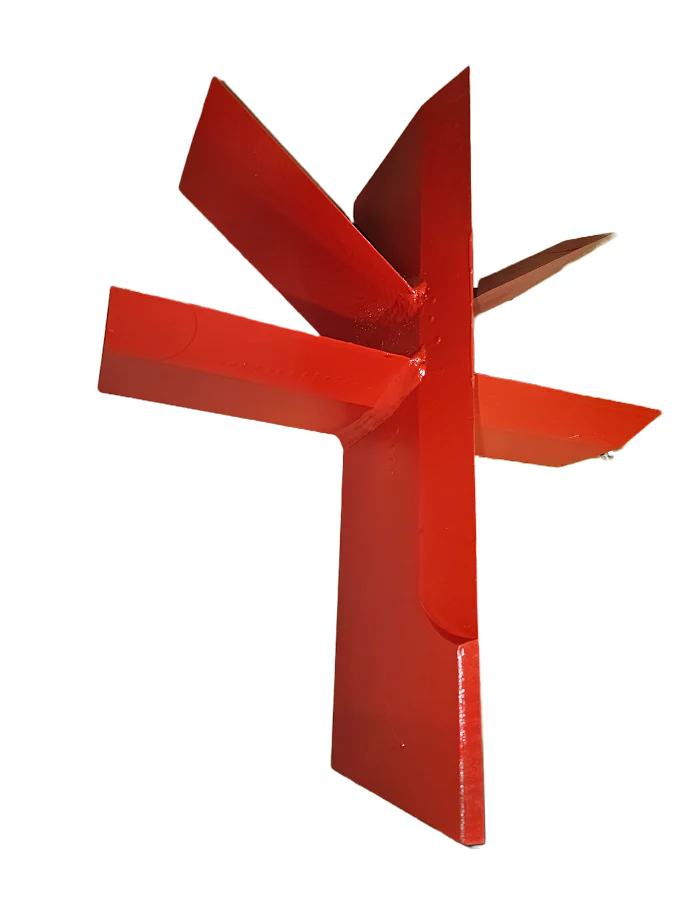

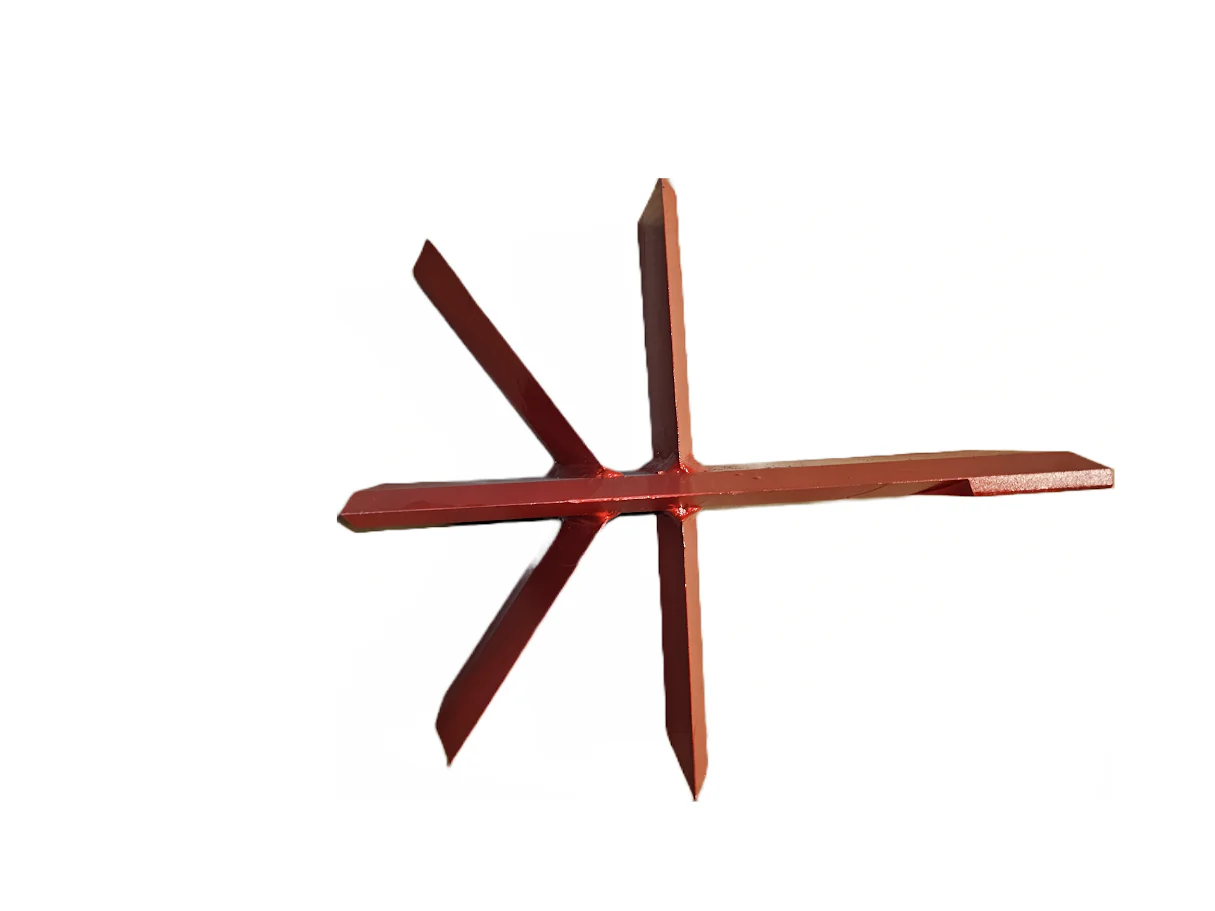

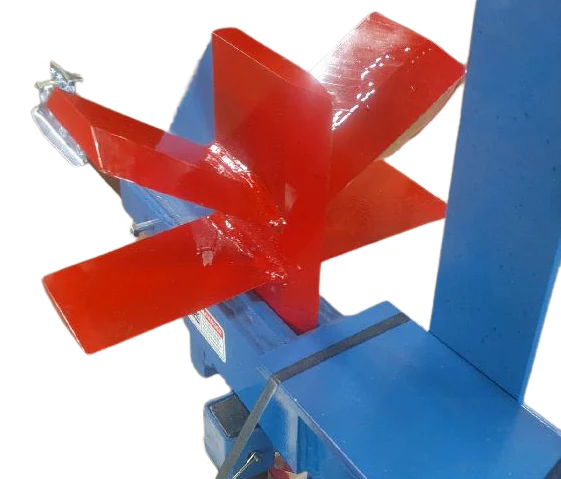

• 4-Way Wedge Included - Optional 6-Way Wedge – Upgrade for faster splitting of large quantities of wood

🛠️ What’s Included

• Ramsplitter H34 Horizontal Log Splitter

• 13 HP Honda GX390 Electric Start Engine

• Pre-installed hydraulic system with auto-return valve

• User manual and warranty documentation

• 4-Way Wedge that is removable (6-way wedge also available during checkout)


🪵 Built for Tough Jobs

• Commercial-grade construction: built in the USA for long-term durability

• Engineered for performance: handles hardwood, knotty logs, and oversized rounds

• Quick setup: easy hitch and go for mobile jobs or remote locations

• Low-maintenance design: dependable Honda engine and heavy-duty hydraulics

Attribute	Detail
Splitting Force	34 Ton (68,000 lbs)
Engine	Honda GX390 (13 HP, 389cc, Electric Start)
Stroke Length	24″
Cycle Time	Approx. 14 Seconds
Max Log Length	25″
Max Log Diameter	40″
Wedge Height	12″ Hardened Steel (Single) 4 Way also included
Wedge / Optional	Hydraulic Powered Single 12" Wedge & 4-Way Wedge / Optional 6-Way Wedge
Working Height	32″
Beam Type	Heavy-Duty Tube Steel
Hydraulic Pump	22 GPM Two-Stage
Hydraulic Fluid	ATF / 32 Weight
Reservoir Capacity	15 Gallons
Tires	12″ Wheels
Tow Hitch	2" Ball Coupler
Tow Speed	Up to 65 MPH
Weight	1,000 lbs
Assembled Dimensions	96″ L x 52″ W x 48″ H
Warranty	3-Year Limited Warranty

⚠️ Important Notes

• Not for sale in California

• Ships in 1–2 weeks via freight (free shipping)

• Residential liftgate delivery available during checkout

• H34-3 User Manual
