Electric Trailer Dolly – 2800 lb Capacity, 24V Powered, Adjustable Ball Mount

Effortless Trailer Transport

Take the hassle out of moving RVs, boats, and utility trailers with this heavy-duty electric power dolly. Built with a reinforced steel frame and maintenance-free drive system, it delivers smooth, reliable performance for both homeowners and professionals.

⚙️ Patented Innovation

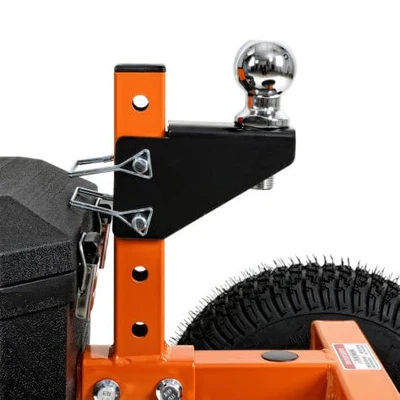

• Adjustable Ball Attachment Mechanism: Patented design enables flexible height adjustments and compatibility with a variety of trailer types.
• Maintenance-Free Drive System: Engineered for long-term reliability, requiring minimal upkeep.

🧩 Key Features

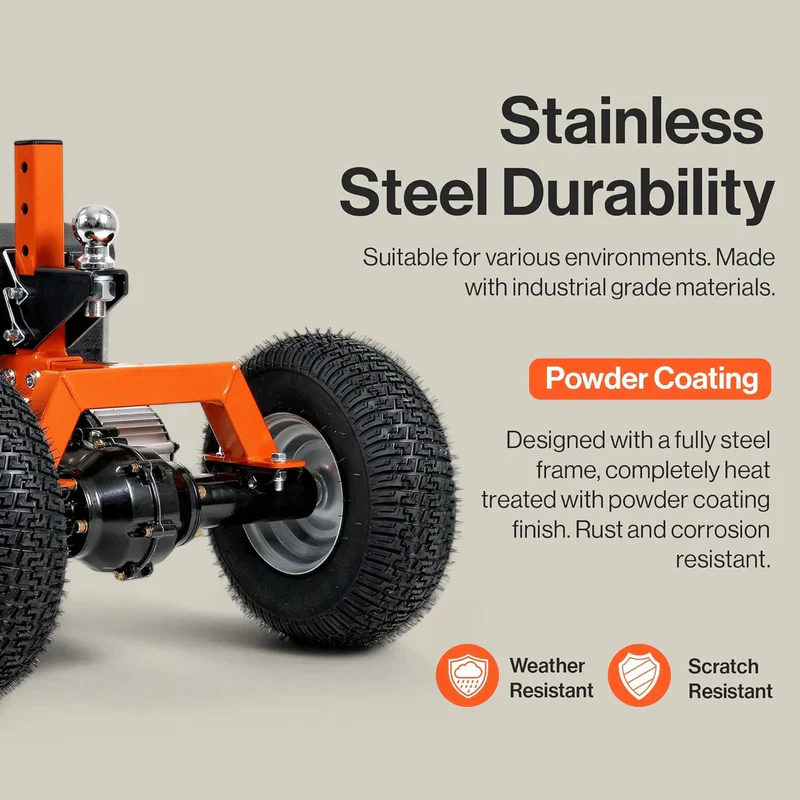

• Advanced Design – Strong steel construction with powder-coat finish, maneuverable wheels, and adjustable ball mount for versatile trailer control.

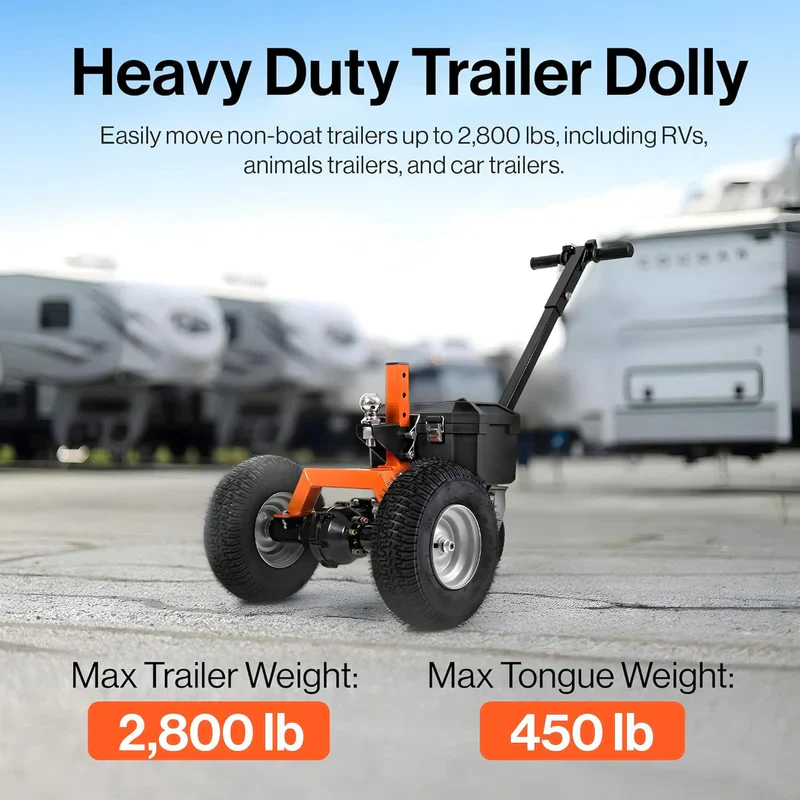

• Efficient Capabilities – Moves trailers up to 2,800 lbs with a maximum 450 lb tongue weight.
• Precise Handling – Thumb throttle lever for variable speed control, plus forward/reverse switch for quick directional changes.

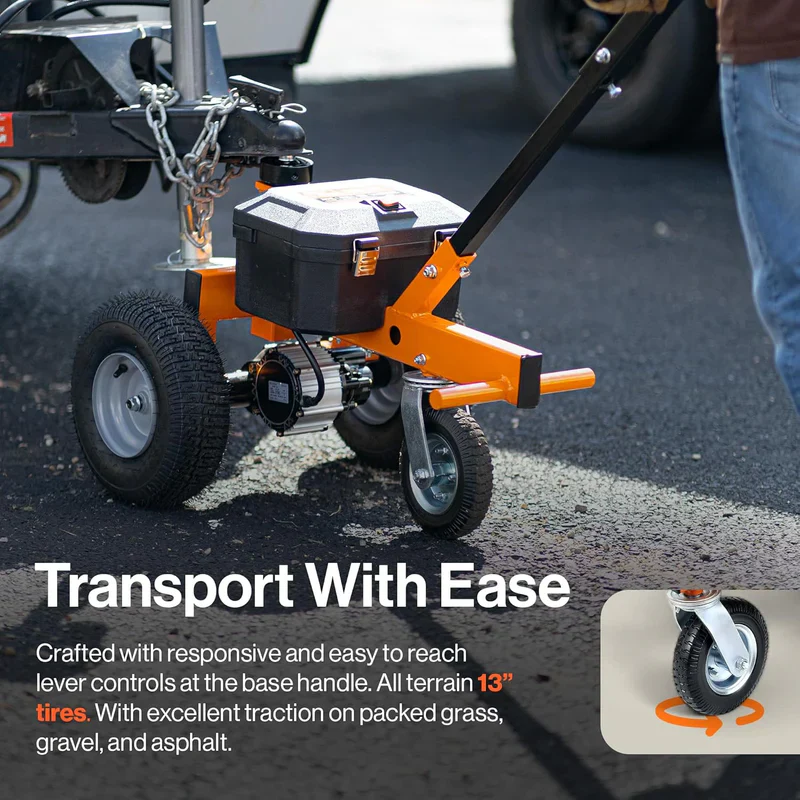

• Enhanced Maneuverability – Swiveling caster wheel ensures smooth turns and tight-space handling
• Convenient Power Supply – Runs on (2) 12V 7Ah AGM batteries, includes a smart charger (100-240VAC input / DC28.8V-2.0A output).
• Built-in Safety – Automatic Overload Protector shuts down the dolly if electrical overloading occurs, protecting operator and machine.

⚠️ Safety First

• Use on Flat Surfaces Only: Do not operate on inclines or declines above 4°.
• Always Use Protective Gear: Wear hand and eye protection during operation.
• Keep Dry: Ensure all electrical components are protected from moisture.

✅ Backed by a 1-Year Factory Warranty

Confidence in performance. Reliability you can count on.

📏 Specifications

Attribute	Specification

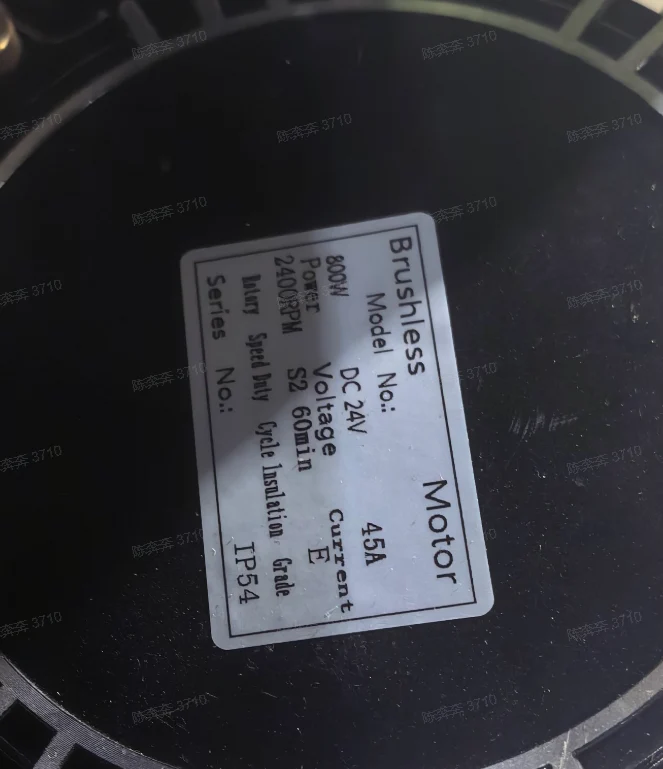

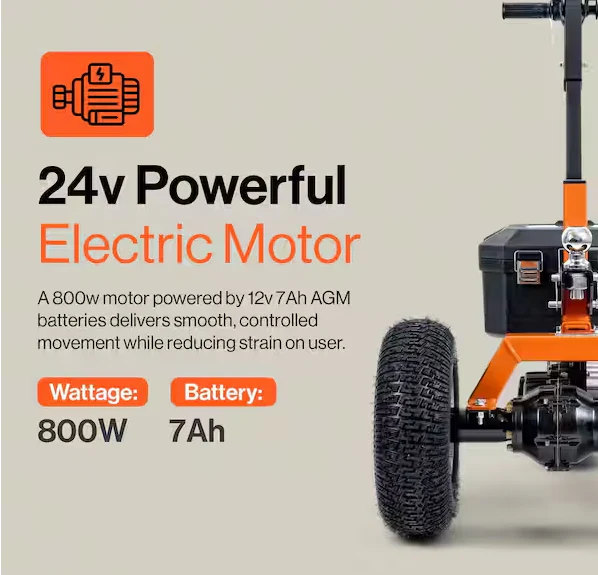

Motor	800W Electric
Power Supply	24V (2 × 12V 7Ah AGM Batteries)

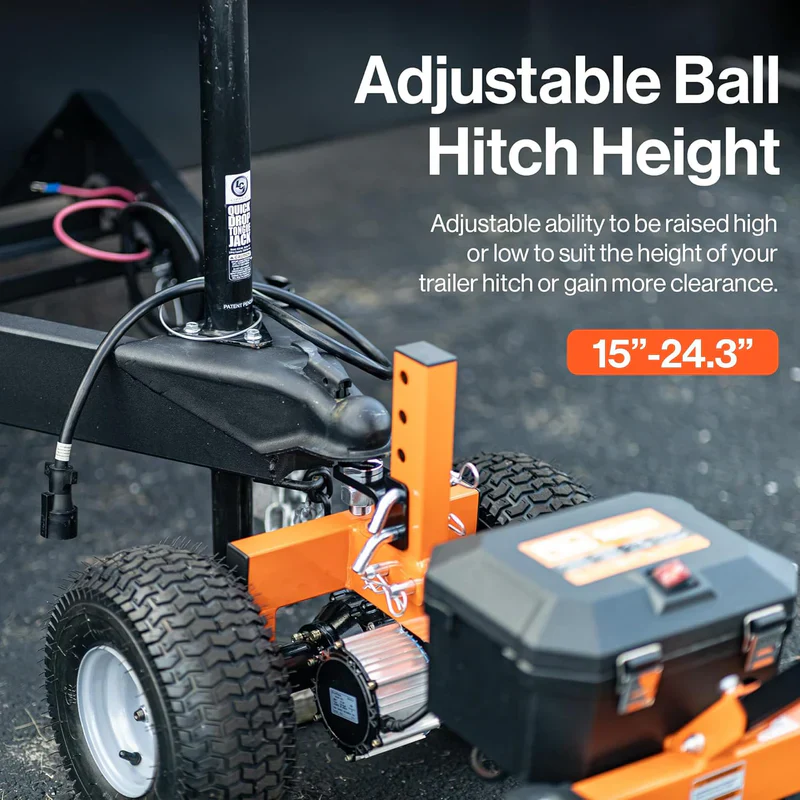

Adjustable Ball Mount	2” Ball, Height Adjustable
Max Trailer Capacity	2,800 lbs
Max Tongue Weight	450 lbs
Dimensions (L × W × H)	42” × 24” × 40”
Item Weight	101 lbs
Frame Material	Reinforced Steel
Wheel Size	13 in Pneumatic
Finish / Color	Powder-Coat / Orange
Max Operable Slope	4° (Do not exceed)
Safety Features	Overload Protector
Warranty	1 Year Limited
