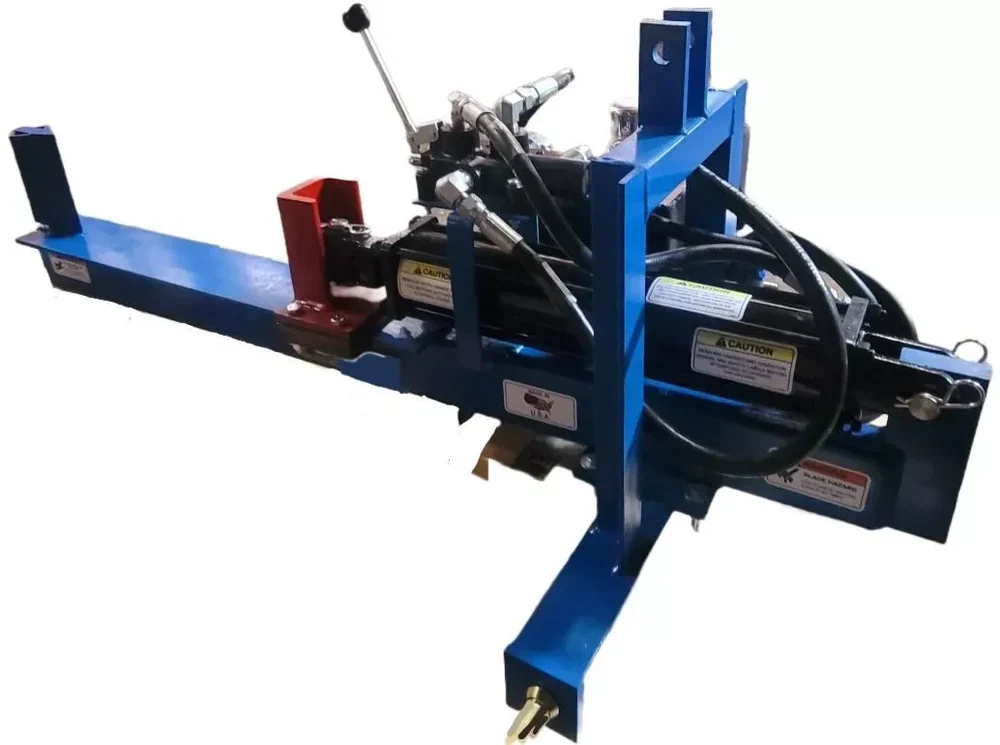

16 Ton Tractor 3 Point Log Splitter (3PT16H)

Tractor Hydraulic Powered • Category 1 Hitch • Built for Small Tractor Owners

The 3PT16H 16 Ton Tractor 3 Point Log Splitter is a practical, heavy-duty attachment built for small tractor owners who want a dependable way to split firewood using their tractor’s hydraulic system. Designed for Category 1 3-point hitches, this splitter hooks up to your tractor’s auxiliary hydraulic outputs and is ready to work once properly equipped.

Built with a reinforced tubular beam design, 3.5" x 18" cylinder, and auto-return detent valve, the 3PT16H is made to handle a wide range of homeowner and farm firewood needs. It offers approximately 16 tons of splitting force, depending on your tractor’s hydraulic output, and is recommended for tractors with a minimum flow rate of 5 GPM.

For added flexibility, this splitter can also be customized with a PTO self-contained hydraulic kit, 4-way wedge, log cradles, multiple color choices, or even a horizontal / vertical beam configuration.

---

Key Features & Benefits

• 16 Tons of Approximate Splitting Force
  Built to provide dependable firewood splitting performance for homeowners and small acreage users.
• Designed for Small Tractors
  Great fit for tractor owners who want to use existing hydraulic power for wood splitting.
• Category 1 3-Point Hitch Setup
  Standard pins used are Category 1 for common compact and utility tractor compatibility.
• Runs Off Tractor Hydraulics
  Connect to the auxiliary outputs of your tractor and split wood without a separate engine.
• Recommended 5 GPM or Higher Flow Rate
  Best performance is achieved with properly equipped tractors offering at least 5 GPM hydraulic flow.
• Heavy-Duty Tubular Beam Construction
  Built with a 2" wide x 5" tall tubular beam and 5" reinforced top plate for durability.
• 3.5" x 18" Cylinder
  Strong hydraulic cylinder designed for consistent splitting force.
• Auto Return Detent Valve
  Helps improve productivity and ease of use during repetitive splitting.
• Adjustable Working Height
  Use your tractor’s 3-point hitch to position the splitter at a comfortable working height.
• Customizable Setup
  Choose from optional PTO kit, 4-way wedge, log cradles, and horizontal / vertical operation.

---

Optional Upgrades

• Color Choice
  Available in Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
• PTO Kit
  Self-contained hydraulic system powered by your tractor’s PTO. Includes tank and 11.9 GPM PTO pump designed for 540 RPM PTO operation.
• 4-Way Wedge
  Slips over the standard wedge to split logs into 4 pieces in one pass.
  Note: reduces opening size by 2 inches.
• Log Cradles
  Helps hold logs in place during splitting so you do not have to support them by hand.
• Horizontal / Vertical Version (3PT16HV)
  Optional beam design flips up and locks into vertical position, making it easier to split heavier rounds without lifting them onto the beam.

---

Why Choose the 3PT16H?

If you already own a small tractor and want an affordable, durable splitter that uses the hydraulic power you already have, the 3PT16H is a smart option. It gives you a solid blend of tractor-powered convenience, customization options, and heavy-duty construction for home, farm, and acreage firewood work.

---

Quick Specs

---

Important Notes

• Top link, hoses, pins, and quick disconnects are not included
• All hoses and connections are included only with PTO kits
• Tractor hydraulic performance will affect actual tonnage and cycle time
