20 Ton Horizontal / Vertical Tractor 3-Point Log Splitter (3PT20HV)

Tractor-Powered • Horizontal / Vertical Splitting • Made in the USA

The Ram Splitter 3PT20HV has become a popular choice for tractor owners who want dependable splitting power with the flexibility to work in both horizontal and vertical positions. Built for real firewood work, this American-made 3-point log splitter makes it easy to handle everything from standard firewood to heavy rounds you do not want to lift onto the beam by hand.

Designed to run from your tractor’s hydraulic system, the 3PT20HV delivers up to 20 tons of splitting force, depending on your tractor’s hydraulic output. Its rugged tubular beam design, 4" x 24" cylinder, and 8" splitting wedge provide the strength needed for home, farm, and acreage firewood production. Vertical mode is especially useful for larger rounds, helping reduce lifting and operator strain.

For users who need even more flexibility, this splitter is fully customizable with optional PTO kit, 4-way wedge, log cradles, larger opening, and your choice of paint color.

---

Key Features & Benefits

• 20 Tons of Splitting Force
  Built to deliver strong tractor-powered splitting performance for home and farm firewood use.

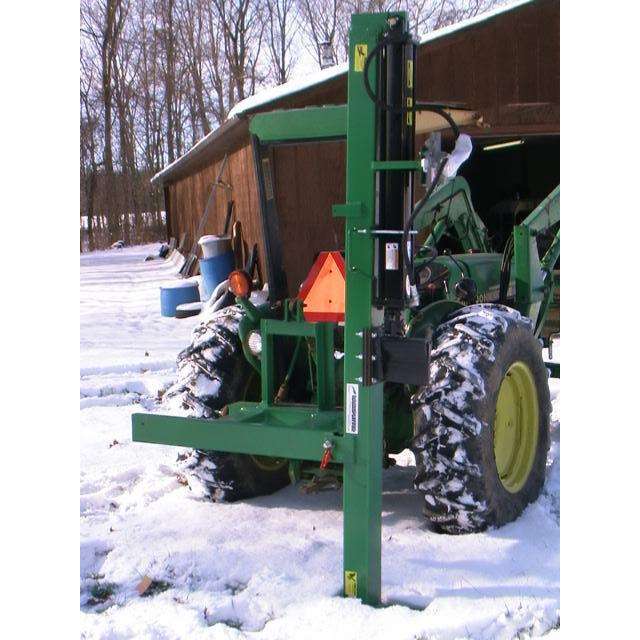

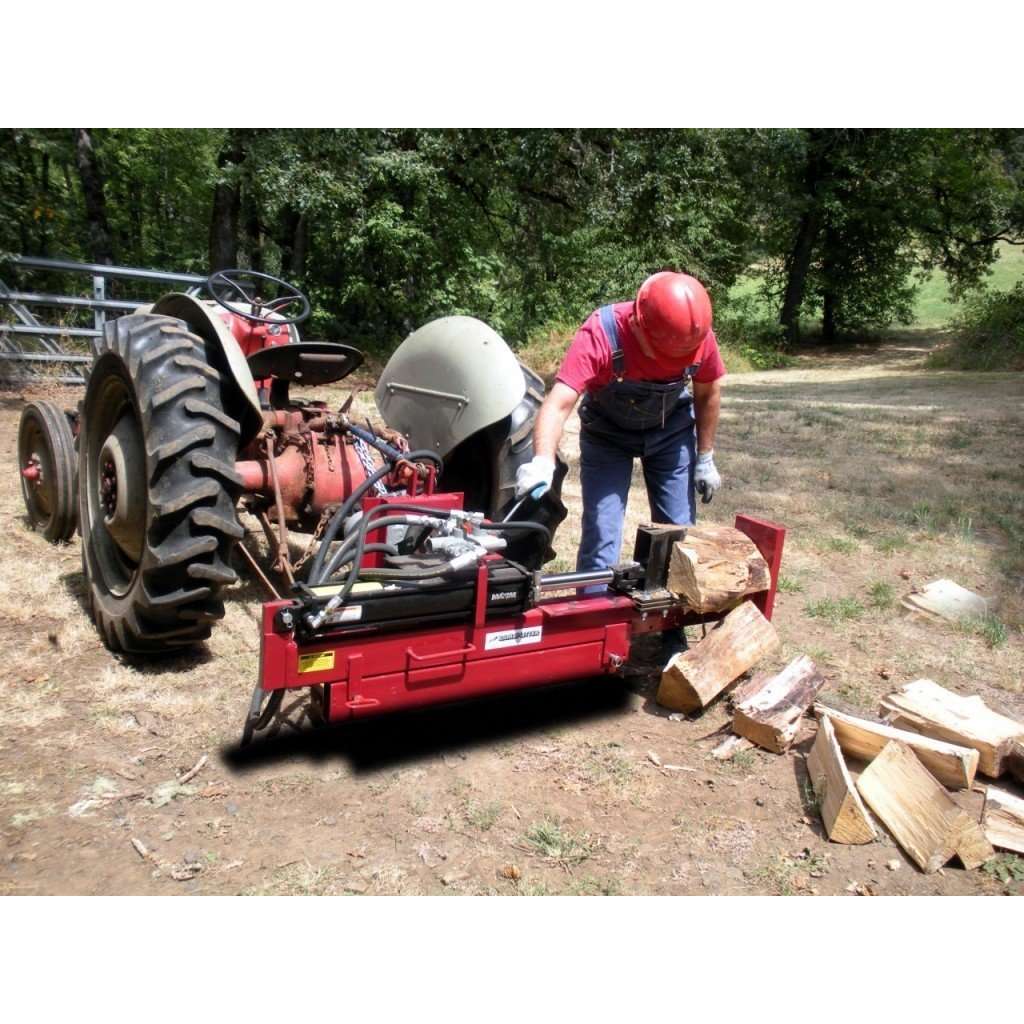

• Horizontal / Vertical Operation
  Split in either position for greater flexibility and easier handling of larger rounds.
• Popular 3-Point Tractor Splitter Design
  Great choice for tractor owners who want a simple, effective, hydraulic-powered splitter.

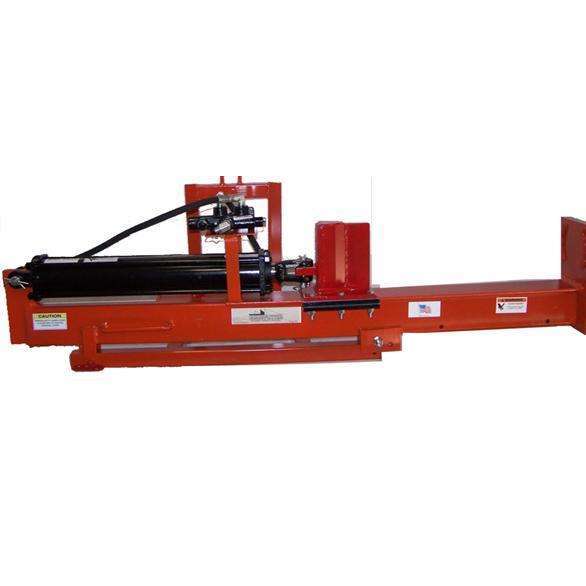

• Heavy-Duty Tubular Beam Construction
  Built with a 2" wide x 5" tall beam and 6" reinforced top plate for strength and durability.
• 4" x 24" Hydraulic Cylinder
  Provides dependable force and consistent splitting action.
• 8-Inch Splitting Wedge
  Durable wedge designed for reliable performance on a wide range of wood types.
• Deadman Switch for Added Safety
  Stops the ram when the control handle is released.
• Auto-Return Control Valve
  Valve locks into return for easier operation and improved workflow.
• Built-In Relief Valve
  Helps protect the hydraulic system during operation.
• Rectangular Tube Beam Design
  Helps eliminate twisting and bending under load.
• Adjustable Working Height
  Use your tractor’s 3-point hitch to set a comfortable working height.
• Made in the USA
  Built for long-term durability and dependable real-world performance.

---

Recommended Hydraulic Requirements

• Recommended minimum flow rate: 7.5 GPM or higher
• Actual cycle time and tonnage depend on your tractor’s PSI and GPM
• Tractors not properly equipped can be set up with the optional PTO kit

---

Optional Upgrades

• Color Choice
  Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
• PTO Kit
  Self-contained hydraulic setup with tank and 21 GPM PTO pump designed for 540 RPM PTO operation.
  25 HP minimum tractor required.
• 4-Way Wedge
  Slips over the standard wedge to split logs into 4 pieces in one pass.
  Note: reduces opening size by 3 inches.
• Log Cradles
  Helps catch falling wood and reduce bending by keeping split pieces off the ground.
• Larger Opening Option
  Standard unit features a 25" opening with a 4" x 24" cylinder.
  Optional 4" x 30" cylinder increases opening to 31".

---

Why Choose the 3PT20HV?

If you want a tractor-powered splitter that gives you the convenience of both horizontal and vertical operation, the Ram Splitter 3PT20HV is a strong option. It offers dependable splitting power, helpful safety features, and the flexibility to handle larger logs without all the lifting. For homeowners, acreage owners, and farms, it is a practical and durable USA-made solution.

---

Quick Specs

---

Important Notes

• Standard pins are Category 1, but can be changed to Category 2 or 3
• Hose ends / connectors are not included
• Top link pins and tractor-related hardware are not included
• All hoses and connections are included with PTO kits
• Some assembly is required

---

Shipping Note

This item ships by freight truck. You will be responsible for unloading the crate unless liftgate delivery is selected.
