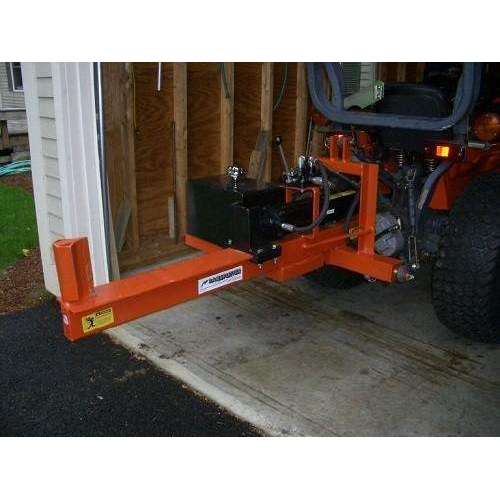

20 Ton Horizontal Tractor 3-Point Log Splitter (3PT20H)

Tractor Hydraulic Powered • Horizontal Splitting • Made in the USA

The Ram Splitter 3PT20H is a popular choice for tractor owners who want to use their tractor’s existing hydraulic system to power a dependable firewood splitter. Just connect to your tractor’s auxiliary hydraulic outputs and start splitting. It is a simple, cost-effective solution for homeowners, acreage owners, and farm users who want solid splitting performance without a separate engine-powered unit.

Built with a heavy-duty tubular beam, 4" x 24" cylinder, and 8" splitting wedge, the 3PT20H delivers up to 20 tons of splitting force, depending on your tractor’s hydraulic output. Its horizontal design keeps operation straightforward and efficient, while the 3-point hitch setup allows you to adjust working height to a comfortable level.

This American-made splitter is also highly customizable, with available options including a PTO kit, 4-way wedge, log cradles, larger opening cylinder, and your choice of color.

---

Key Features & Benefits

• 20 Tons of Splitting Force
  Designed to deliver strong tractor-powered splitting performance for home and farm firewood use.
• Runs Off Existing Tractor Hydraulics
  Connect to your tractor’s auxiliary outputs and split without maintaining a separate gas engine.
• Horizontal Splitting Design
  Stable and efficient layout for routine firewood production.
• Heavy-Duty Tubular Beam Construction
  Built with a 2" wide x 5" tall beam and 6" reinforced top plate for strength and durability.
• 4" x 24" Hydraulic Cylinder
  Provides dependable force and steady splitting action.
• 8-Inch Splitting Wedge
  Strong wedge designed for reliable performance across a wide range of wood types.
• Auto Return Detent Valve
  Helps improve efficiency and ease of use during repetitive splitting.
• Adjustable Working Height
  Set working height using your tractor’s 3-point hitch.
• Customizable Setup
  Choose the options that best fit your tractor, wood type, and workflow.
• Made in the USA
  Built for durability, dependable service, and long-term value.

---

Recommended Hydraulic Requirements

• Recommended minimum flow rate: 7.5 GPM or higher
• Actual cycle time and tonnage depend on your tractor’s PSI and GPM
• If your tractor is not properly equipped, an optional self-contained PTO kit is available

---

Optional Upgrades

• Color Choice
  Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
• PTO Kit
  Self-contained hydraulic setup with tank and 21 GPM PTO pump designed for 540 RPM PTO operation.
  25 HP minimum tractor required.
• 4-Way Wedge
  Slips over the standard wedge to split logs into 4 pieces in one pass.
  Reduces opening size by 3 inches.
• Log Cradles
  Optional welded cradles help hold logs in place and reduce the need to support wood by hand.
• Larger Opening / Cylinder Options
  Standard unit uses a 4" x 24" cylinder with a 25" opening.
  Optional 4" x 30" or 4" x 36" cylinder upgrades are available for larger opening sizes.
• Horizontal / Vertical Version Available
  Also offered in a horizontal / vertical configuration as the 3PT20HV.

---

Why Choose the 3PT20H?

If you already have a tractor with the hydraulic capacity to run a splitter, the Ram Splitter 3PT20H is a smart way to get dependable 20 ton splitting performance without the extra maintenance of a standalone gas-powered unit. It is durable, customizable, USA-made, and designed to make tractor-powered firewood processing simple and effective.

---

Quick Specs

---

Important Notes

• Standard pins are Category 1, but can be changed to Category 2 or 3
• Hose ends / connectors are not included
• Top link pins and tractor-related hardware are not included
• All hoses and connections are included with PTO kits
• Some assembly is required

---

Shipping Note

This item ships by freight truck. You will be responsible for unloading the crate unless liftgate delivery is selected.
