30 Ton Horizontal Tractor 3-Point Log Splitter (3PT30H)

Heavy-Duty Tractor-Powered Splitting • 30 Tons of Force • Made in the USA

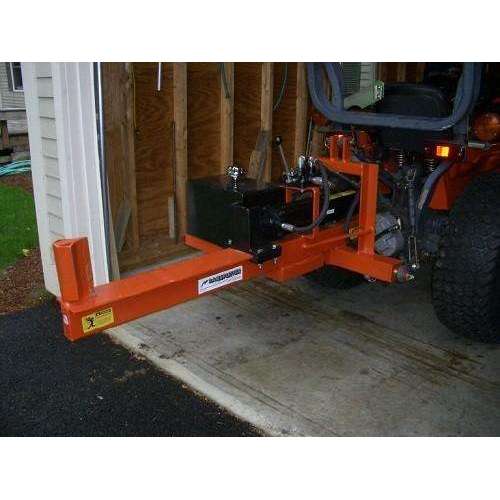

The Ram Splitter 3PT30H is built for tractor owners who want one thing above all else—power. Designed for serious firewood production, this heavy-duty 3-point log splitter delivers up to 30 tons of splitting force and is a cost-effective way to process large, stubborn logs when paired with a properly equipped tractor.

Built with a rugged tubular beam design, 10-inch wedge, and 5" x 24" cylinder, the 3PT30H is made to handle demanding splitting jobs with dependable American-built durability. If your tractor has the hydraulic flow to run it properly, this splitter offers serious performance for farms, acreage owners, and anyone who needs to split large volumes of firewood.

The standard opening size is 26 inches, and the splitter is fully customizable with optional upgrades including a PTO kit, 4-way wedge, log cradles, larger cylinder/opening, and your choice of color.

Made in the USA, this splitter is built to work hard and built to last.

---

Key Features & Benefits

• 30 Tons of Splitting Force
  Delivers serious hydraulic power for large rounds and tough hardwoods.
• Built for Tractor Hydraulic Power
  Ideal for tractor owners who want a high-output splitter without a separate engine-powered unit.
• Heavy-Duty Tubular Beam Construction
  Built with a 3" wide x 6" tall beam and a 6" reinforced top plate for strength and durability.
• 10-Inch Splitting Wedge
  Large wedge designed for aggressive, dependable splitting performance.
• 5" x 24" Cylinder
  Heavy-duty cylinder setup built for powerful, consistent operation.
• Horizontal Splitting Design
  Stable layout for efficient firewood processing and easy log handling.
• Adjustable Working Height
  Working height is set using your tractor’s 3-point hitch.
• Auto Return Detent Valve
  Helps improve efficiency and reduce operator effort.
• Made in the USA
  Built for long-term reliability and real-world firewood production.

---

Recommended Hydraulic Requirements

For best performance, it is recommended that your tractor provide 12 GPM or more.
The more flow available, the better the cycle time. Tractors with lower flow may result in much slower operation.

---

Optional Upgrades

• Color Choice
  Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
• PTO Kit
  Self-contained hydraulic setup with tank and 21 GPM PTO pump. Designed for 540 RPM PTO operation.
  35 HP minimum tractor required.
• 4-Way Wedge
  Slips over the existing wedge to split logs into 4 pieces in one pass.
  Reduces opening size by 3 inches.
• Log Cradles
  Optional welded cradles help hold logs in place and reduce the need to support wood by hand.
• Larger Opening / Cylinder Options
  Standard unit uses a 5" x 24" cylinder. Optional 5" x 30" or 5" x 36" cylinder upgrades are available for larger opening sizes.
• Horizontal / Vertical Version Available
  Also offered in a horizontal / vertical configuration as the 3PT30HV.

---

Why Choose the 3PT30H?

If you already have a tractor with enough hydraulic capacity, the Ram Splitter 3PT30H gives you one of the most cost-effective ways to get serious splitting power. It is rugged, customizable, USA-made, and designed for users who need more than a light-duty homeowner splitter.

---

Quick Specs

---

Important Notes

• Standard pins are Category 1, but can be changed to Category 2 or 3
• Hose ends / connectors are not included
• Top link pins and tractor-related hardware are not included
• All hoses and connections are included with PTO kits
• Average ship-out time is typically 7–15 business days
• Some assembly is required

---

Shipping Note

This item ships by freight truck. You will be responsible for unloading the crate unless liftgate delivery is selected as an option.
