16 Ton Tractor 3 Point Log Splitter (3PT16HV)

Horizontal / Vertical Operation • Tractor Hydraulic Powered • Great for Small Tractor Owners

The 3PT16HV 16 Ton Tractor 3 Point Log Splitter is a practical, versatile splitter built for small tractor owners who want an easy way to process firewood using their tractor’s hydraulic system. Just connect it to your tractor’s auxiliary hydraulic outputs and start splitting.

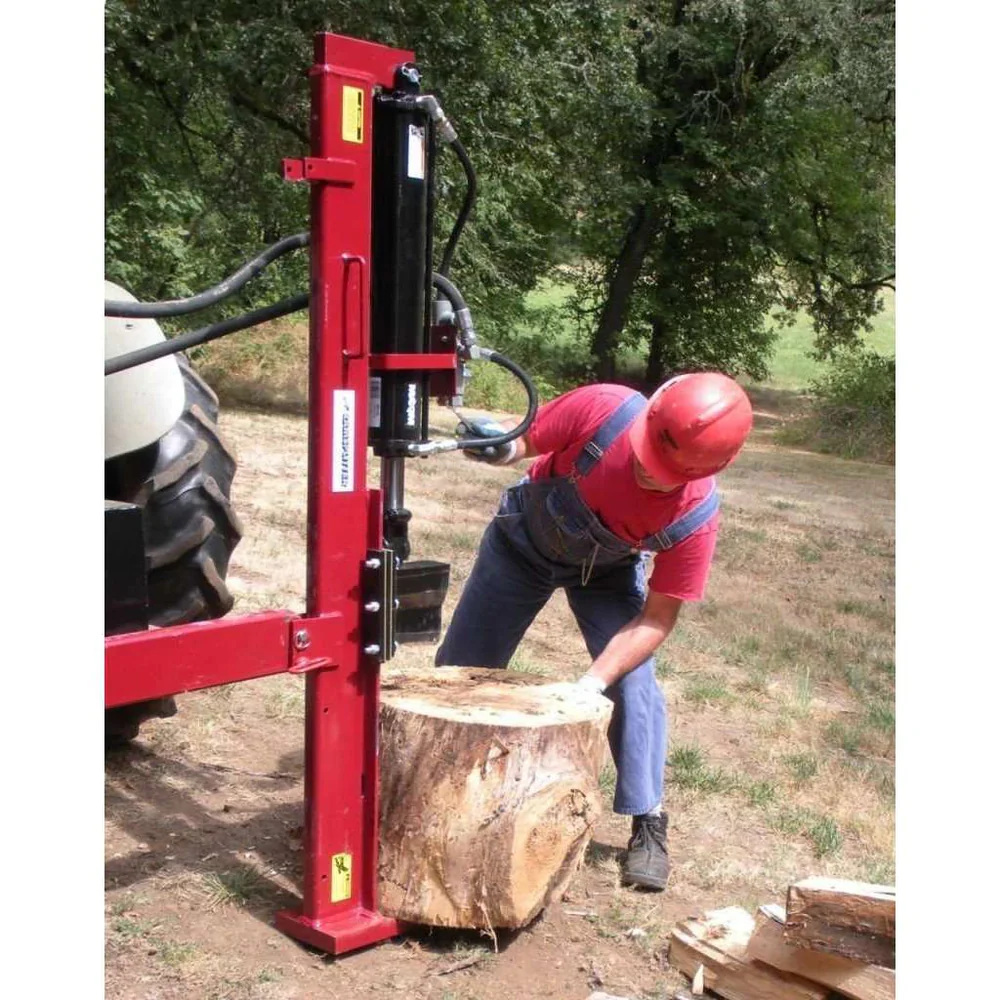

Designed for both horizontal and vertical operation, the 3PT16HV gives you the flexibility to split standard firewood in the horizontal position or work with heavier rounds in the vertical position without lifting them onto the beam. With approximately 16 tons of splitting force, depending on your tractor’s output, this unit is a strong fit for homeowners, acreage owners, and farm use.

Built with a reinforced tubular beam, 3.5" x 18" cylinder, and auto-return detent valve, this splitter is made for dependable performance and easy operation. It is also customizable with optional upgrades including a PTO kit, 4-way wedge, log cradles, and your choice of paint color.

---

Key Features & Benefits

• 16 Tons of Approximate Splitting Force
  Built for dependable firewood splitting using your tractor’s hydraulic power.

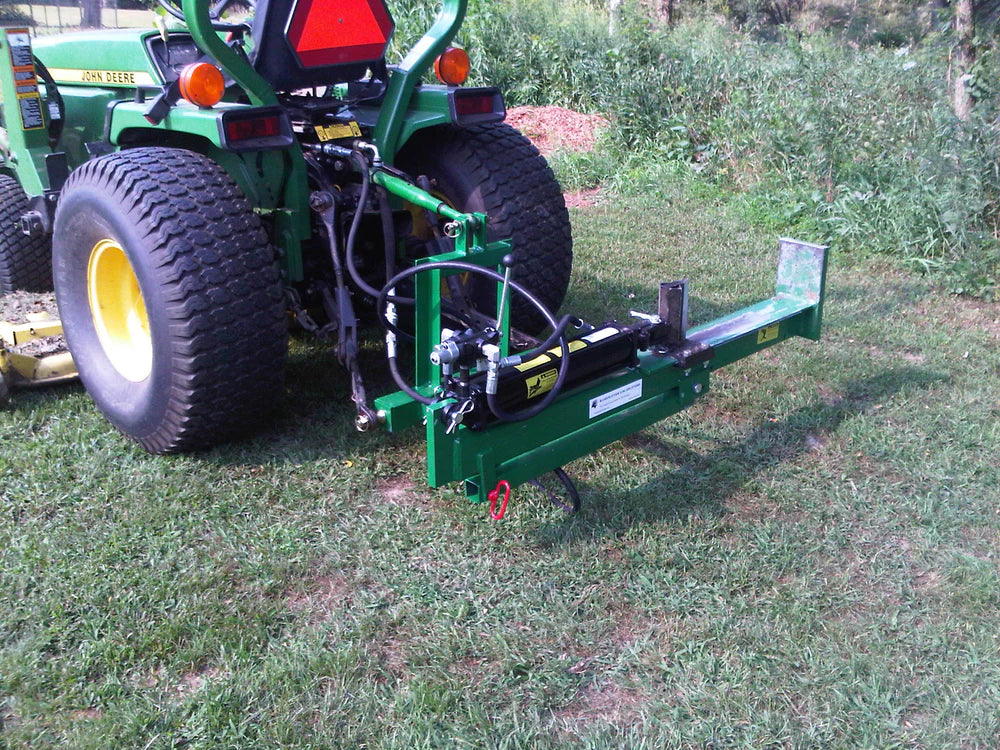

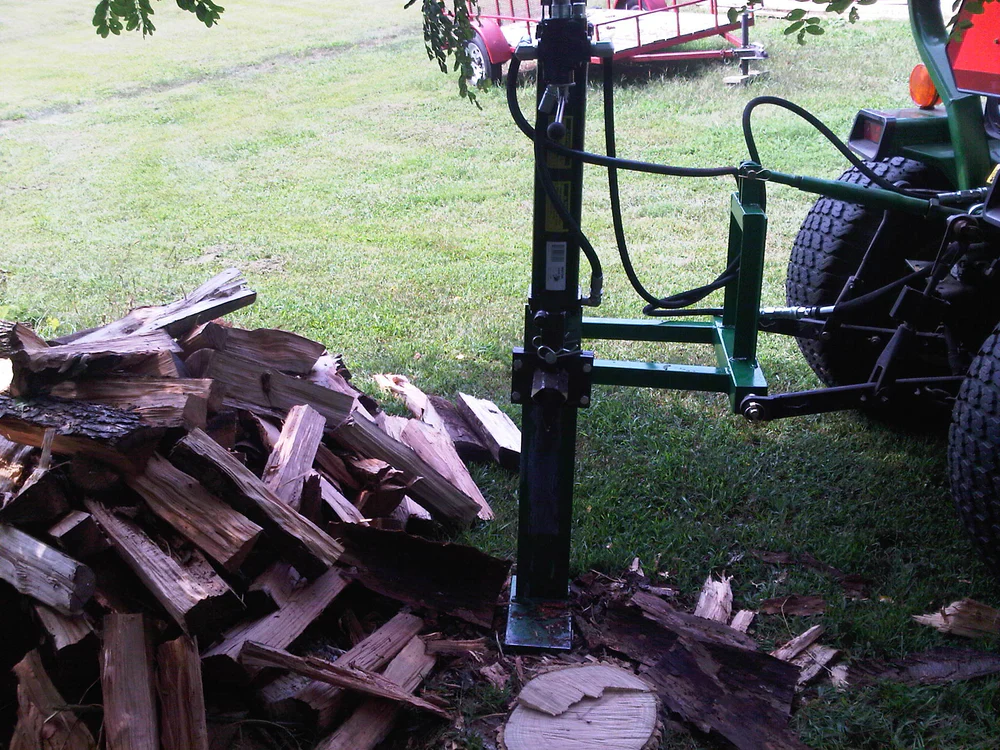

• Horizontal / Vertical Operation
  Split in either position for greater flexibility and easier handling of heavier logs.
• Designed for Small Tractor Owners
  Great solution for users who want to power a splitter from existing tractor hydraulics.
• Category 1 Hitch Setup
  Standard pins used are Category 1.
• Heavy-Duty Tubular Beam Construction
  Built with a 2" wide x 5" tall beam and 5" reinforced top plate for strength and durability.
• 3.5" x 18" Cylinder
  Reliable cylinder design for steady splitting performance.
• 6-Inch Splitting Wedge
  Durable wedge designed for practical home and farm firewood work.
• Auto Return Detent Valve
  Helps improve efficiency and ease of use during repetitive splitting.
• Adjustable Working Height
  Set working height using your tractor’s 3-point hitch.
• Customizable Options Available
  Configure the splitter with the features that best match your tractor and firewood needs.

---

Recommended Hydraulic Requirements

• Recommended minimum flow rate: 5 GPM or higher
• Actual cycle time and tonnage depend on your tractor’s hydraulic output
• If your tractor is not properly equipped, an optional self-contained PTO kit is available

---

Optional Upgrades

• Color Choice
  Choose from Black, Kubota Orange, John Deere Green, or Ford Blue at no additional cost.
• PTO Kit
  Self-contained hydraulic system with tank and 11.9 GPM PTO pump designed for 540 RPM PTO operation.
• 4-Way Wedge
  Slips over the standard wedge to split logs into 4 pieces in one pass.
  Note: reduces opening size by 2 inches.
• Log Cradles
  Helps keep logs in place while splitting. On the horizontal / vertical version, the cradles bolt onto the beam and work more like support tables.

---

Why Choose the 3PT16HV?

The 3PT16HV is a great choice for tractor owners who want a compact, capable splitter with the added benefit of vertical splitting for larger rounds. It offers a practical blend of hydraulic power, flexibility, and simplicity for home and farm firewood processing.

---

Quick Specs

---

Important Notes

• Standard pins are Category 1
• Top link, hoses, pins, and quick disconnects are not included
• All hoses and connections are included with PTO kits
• Some assembly is required
• Ships by freight truck; liftgate service is recommended if unloading help is needed
